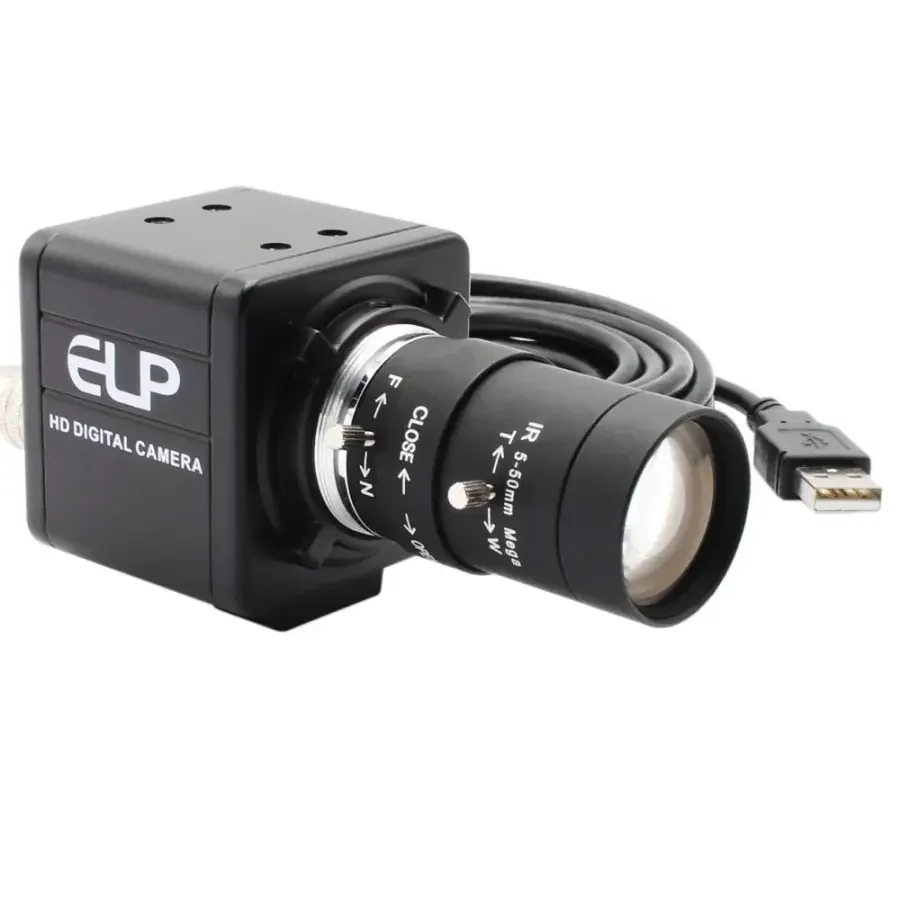

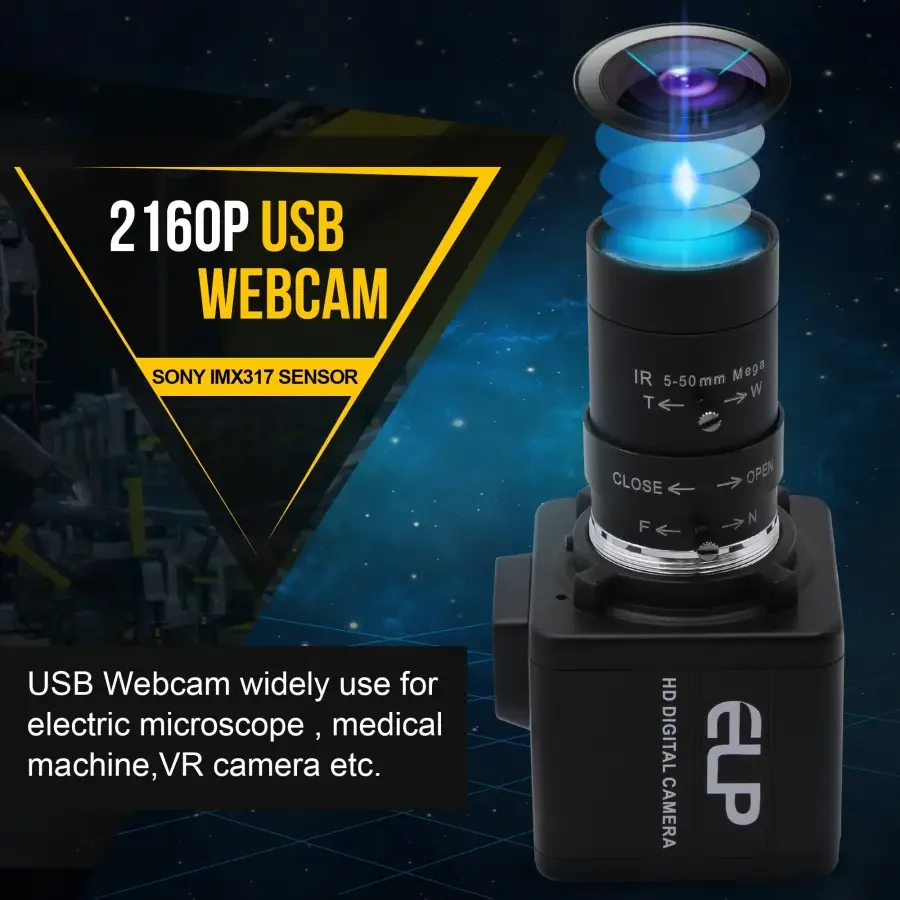

4K SONY High frame rate USB Webcam Camera with Manual Varifocal Lens
4K SONY USB camera module with 2.8-12mm/5-50mm varifocal lens, IMX317 USB Webcam High frame rate 3840x2160 Mjpeg 30fps UVC Plug and PlayÂ
Â
1.Packing list:Â

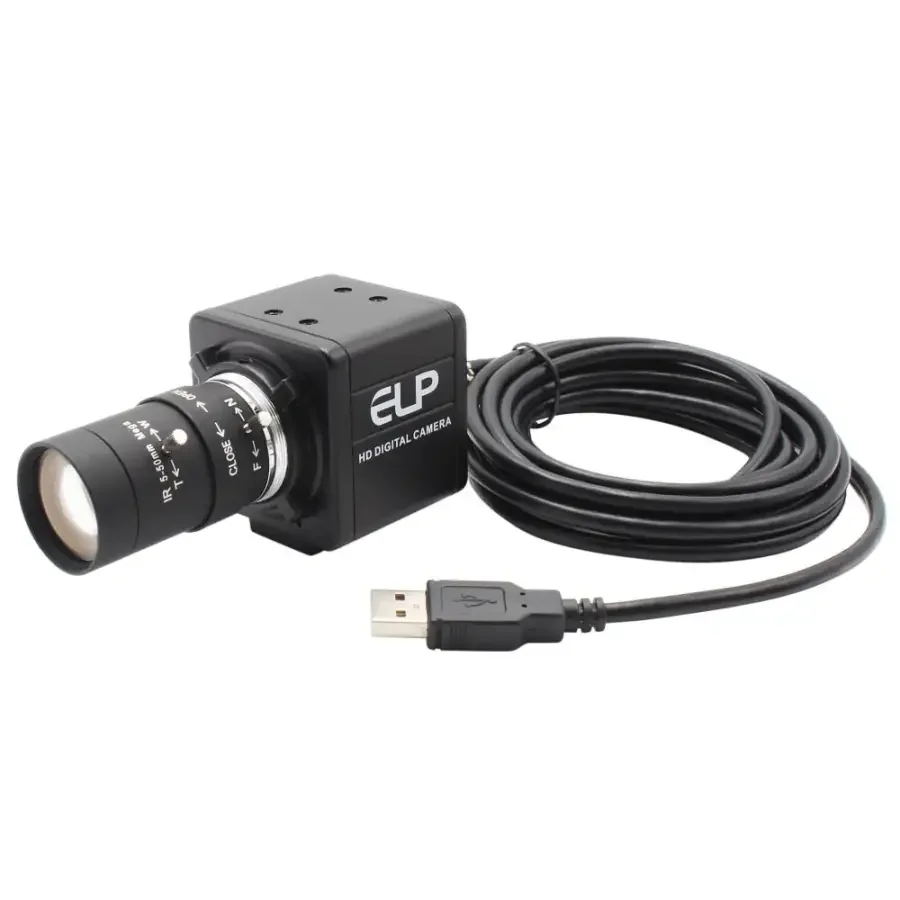

1) 1pc 4K camera module with 2.8-12mm/5-50mm varifocal lens
2) 1pc 3m usb cableÂ
Â
2.Key Specifications:Â
|
Model |
ELP-USB4KHDR01-MFV |
|
Sensor |
SONY IMX317Â (1/2.5â) |
|
Max Resolution |
3840(H) *2160 (V) |
|
Sensitivity |
1000mV/Lux-sec |
|
Image area |
6100^mx4524^m |
|
Picture format |
MJPEG /YUY2 (YUYV) |
|
Resolution & FPSÂ Â |
3840x2160@ 30fps MJPEG/ 2592x1944@ 30fps MJPEG 2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG 1920x1080@ 30fps MJPEG/ 1280x1024@30fps MJPEG 1280x960@30fps MJPEG/1280x720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG/ 320x240@ 30fps MJPEGÂ Â 3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2 2048x1536@ 3fps YUY2 /1600x1200@ 3fps YUY2 1920x1080@ 3fps YUY2/ 1280x1024@3fps YUY2 1280x960@5fps YUY2/1280x720@ 5fps YUY2 1024 x 768@ 5fps YUY2/ 800 x 600@ 20fps YUY2 640x480@ 30fps YUY2 / 320x240@ 30fps YUY2 |
|
Center Definition |
1000LW/PH (Center) |
|
S/N (Signal Noise Ratio) |
26dB |
|
Sensitivity |
0.65V/lux-sec@550nm |
|
Low illumination |
0.2lux |
|
Shutter |
Electronic rolling shutter / Frame exposure |
|
Interface |
USB2.0 High Speed |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Adjustable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast, Exposure |
|
Lens |
2.8-12mm/5-50mm  lens optional Relative Illumination (Sensor): 70% IR Filter: 650±10nm |
|
Power Supply & Connector |
USB BUS POWER 4P-2.0mm socket |
|
Power |
DC5V |
|
Current |
200mA |
|
Size |
38mm x 38mm |
|
Storage Temperature |
-20°C to 70°C |
|
Working Temperature |
0°C to 60°C |
|
USB Cable |
1M(2M/3M/5M Optional) |
|
Operating System |
Win XP/Vista/Win7/Win8 / Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
