8586+ SMD Hot Air Gun Rework Station For PCB Soldering Repair

1 / 12

8586+ SMD Hot Air Gun Rework Station For PCB Soldering Repair

New 8586+ SMD Rework Soldering Station hot air soldering station hot air gun Display Repair Welding Set PCB Desoldering Tool

Feature:

1.SMD Rework Soldering Iron temperatures all can be displayed on the LCD screen.

2.Use PID microcomputer control,warming-up quickly,to the setting temperature only within 3-5 seconds,Use the brushless fan,and long life and low noise.

3.Digital Blue LED display,unique appearance,thickened metal plate, small size, anti-fall, anti-impact.

4.Automatic cooling function for effectively prolonging the heater's life and protecting the hot air gun.

5.Safely remove BGA-IC,keep pins intact,Much more safe and reliable,Blowing PCB will not make it blister

6.Essential product for cell phone repair, laptop repair, circuit boards, etc,Suitable for unsoldering multiple components,such as SOIC CHIP QFP PLCC and BGA etc (especially for flat cables and cable connectors).

7.Applicable for hot contraction heating,depainting,degluing,defrosting,Preheating and rubber soldering and so forth.

Note:

Due to the handle have Precision Horizontal Sensor,When you pick up the handle ,tube nozzle toward up, the gun will automatically step into standby model. When the temperature is less than 100 Degrees,the screen display(SLP),the equipment is on standby model,after temperature of heating element is less than 70°,it will automatically stop rotation,it use for protecting the hot air gun life.

Format:

Output Power	760W (MAX)
Input Voltage	AC 220V 50/60HZ
Outer Casing Material	Steel
Noise	≤45dB

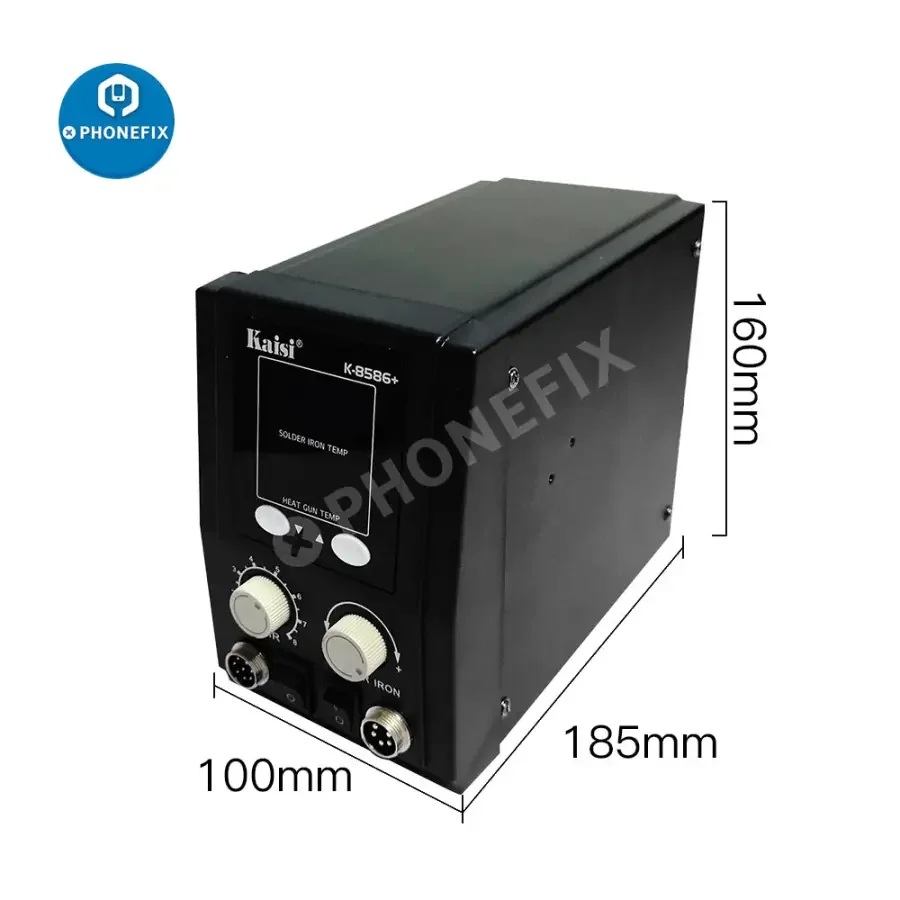

Appearance Volume	185100160mm

Rework Hot Air Gun:

Output Power	700W (MAX)
Input Voltage	AC 220V 50/60HZ

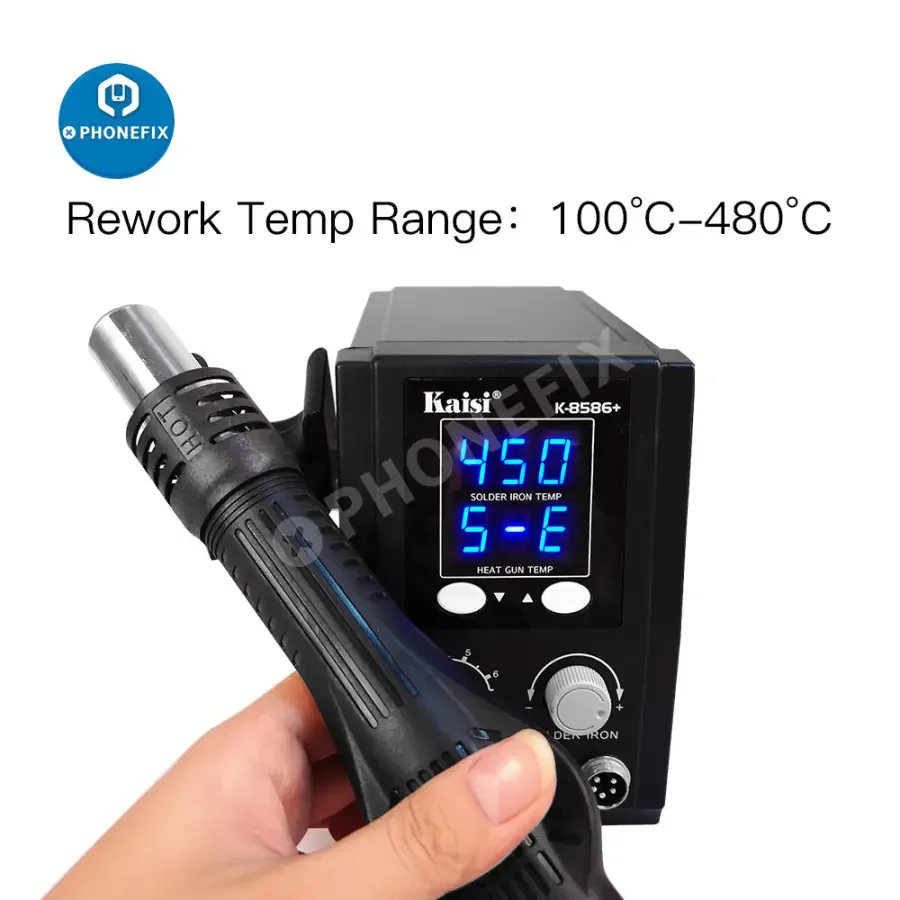

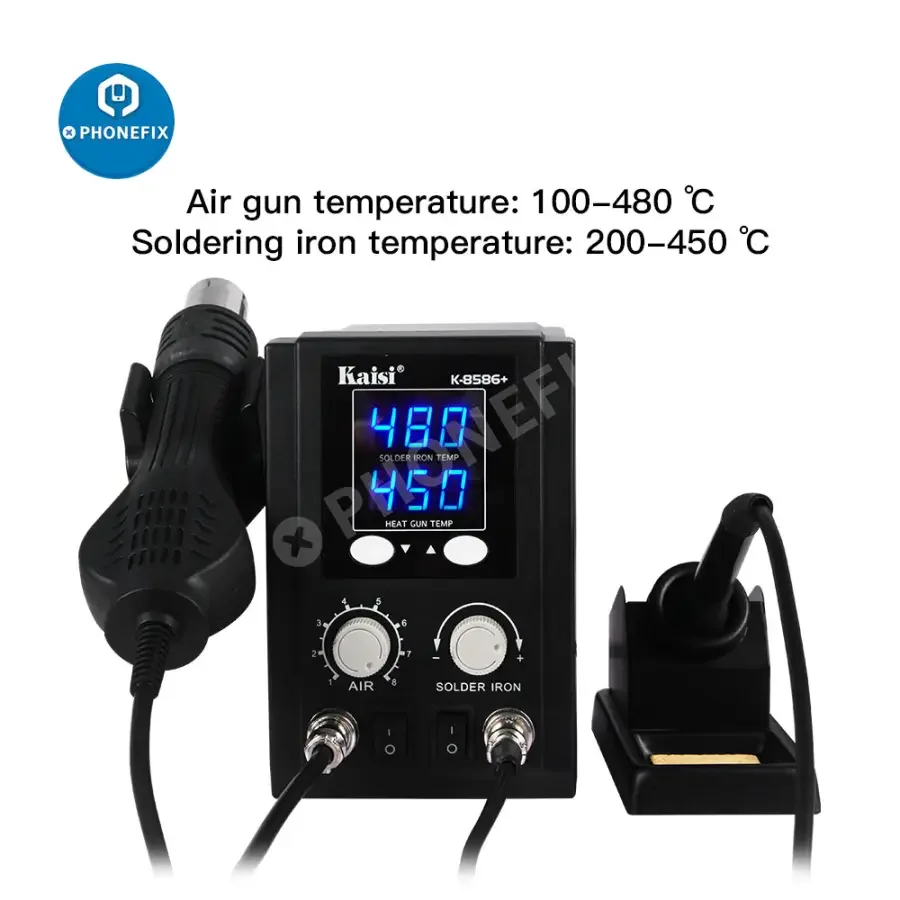

Temperature Range	100°~480°
Gas Flow	120L/Min (MAX)
Heat Gun Heating Core	Ceramic Heating Core
LCD Display	Yes

Soldering Iron:

Output Power	60W(MAX)
Input Voltage	AC 24V 50/60HZ
Temperature Range	200°~450°
Soldering Iron Heating Core	Nickel Wire Metal Heating Core
Soldering Iron Tip of Grounding Resistance	Lower than 2Ω
LCD Display	Yes

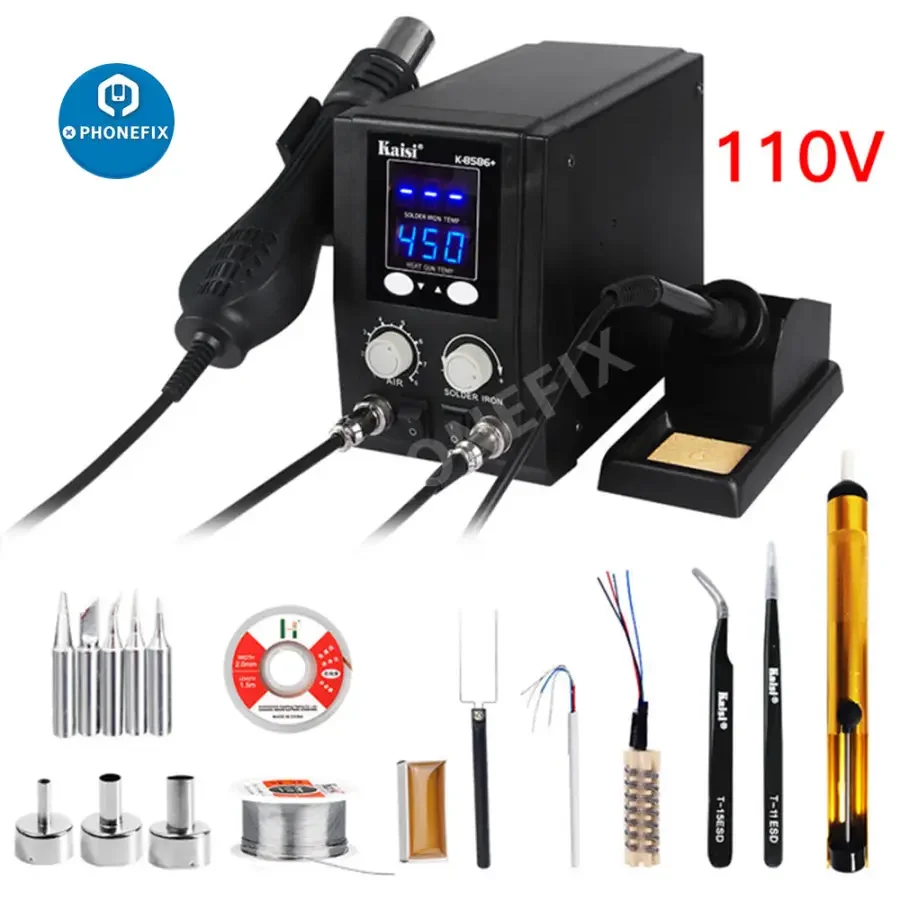

Package Included:

1 x 8586+ Soldering Station

1 x Hot air gun handle

1 x Soldering Iron

2 x Tweezers(fine tip curved,fine tip straight )

1 x IC Extractor

1 x Soldering stand(with Cleaning Sponge)

1 x Desoldering Pump

1 x Nickel Wire Heating Core

1 x Ceramic Heating Core

1 x Power cord * 1 EU(length:100mm)

3 x Nozzles( 5mm,7mm,10mm)

1 x rosin

1 x Solder Wire

1 x Suction wire

5 x Soldering Tip(I IS IC K B )

1 x English Instruction Manual
