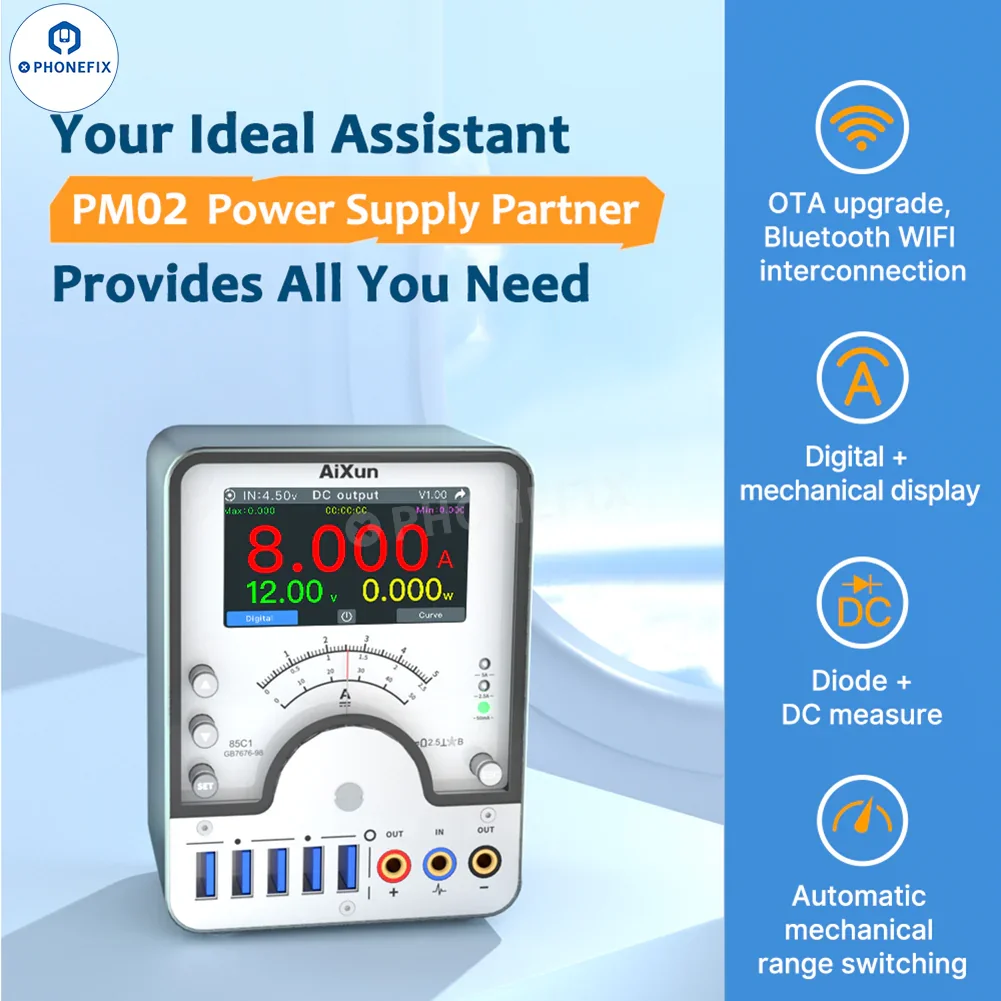

AiXun PM02 intelligent Digital Display DC power supply partner has both diode and DC voltage measurement for mobile phone motherboard repair. AiXun PM02 Multi-function Digital Display DC Voltage Regulated Power Supply supports 5G dual-mode WiFi + Bluetooth module, multi-speed curve measurement, voltage and diode measurement, digital display, pointer and curve display, OTA online upgrade.

Features:
1. Enable both diode and DC voltage measurement, make testing easier, repair and operate more conveniently.
2. High-Speed and accurate measurement: Integrated low, medium and high speed curve measurement, real-time current value capture with millisecond precision.
3. Automatic machinery range switching: Automatic switching of mechanical current range, no manual adjustment is needed, avoid mechanical pointer damage.
4. Safe voltage auto protection: Pop-up reminder in case of abnormal working canditions, avoid components damage due to high voltage.

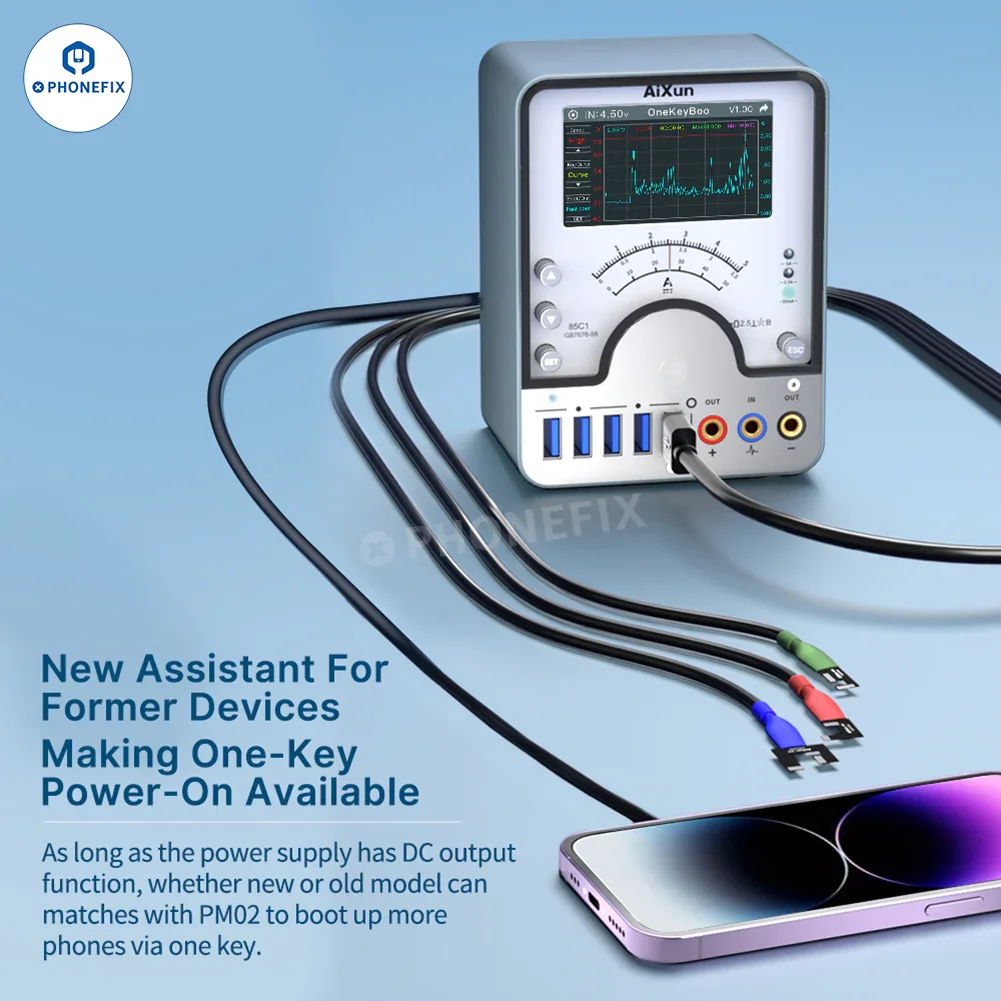

5. As long as the power supply has DC output function, whether new or old model can matches with PM02 to boot up more phones via one key.

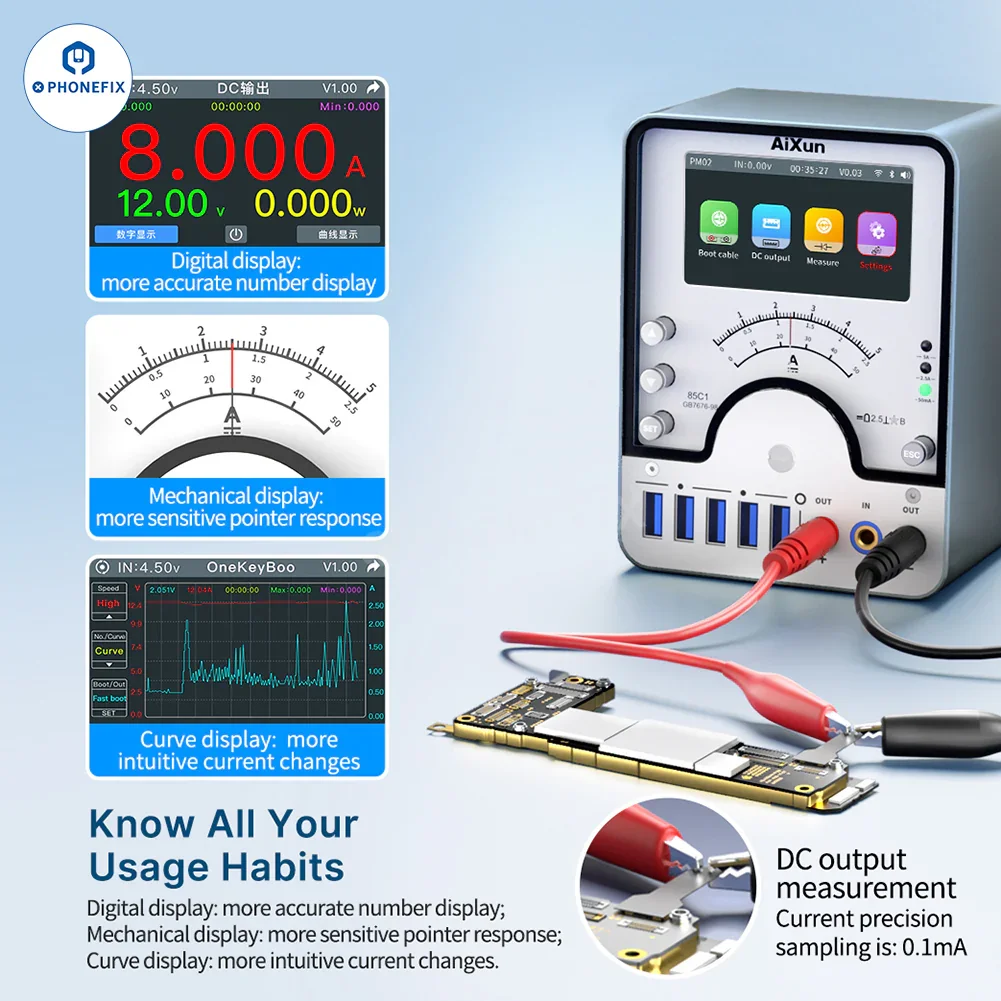

6. Digital display: more accurate number display; Mechanical display: more sensitive pointer response; Curve display: more intuitive current changes.
7. 5G dual-mode WiFi and Bluetooth module, support OTA online upgrade, software never be out of date, one key to update more protocols.
8. Standard 1/4 screw hole design at the bottom, easy to fit and be fasten with various brackets.
9. Five one-key boot ports, adjustable backlight brightness and font color ,Aluminum alloy body, black gold circuit board, good quality both inside and outside.

Product Parameters:

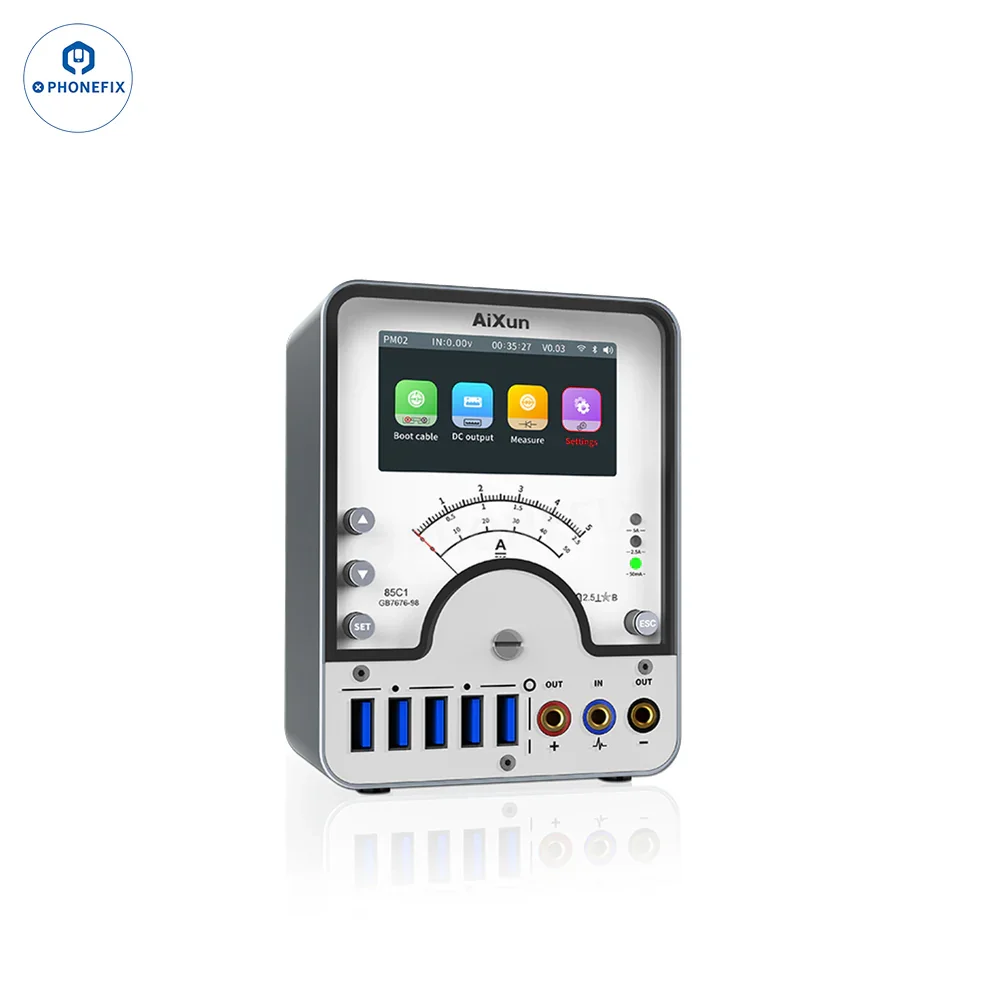

Product name: PM02 Power Supply Partner.
Brand: AiXun.
DC input range: 0~32V.
Dimensions: 97*67*130mm.
DC output range: Keep pace with input voltage.
Pointer range: 50mA, 2.5A, 5A.
Display screen: 3.0inch IPS.
Host Type-C input: 5V, 0.5A(Max).
Diode measure range: <2v.
Voltage measure range: 0.1-32V.
