AWithZ New Farah capacitor UF20B spot welding machine Energy gathering welding 0.4mm Solderable Copper for Mobile Phone Battery Motherboard PCB welding Repair. AWithZ UF20B small portable super farad capacitor spot welder with WP110 and WP120 spot welding pens, with AT automatic mode, MT intelligent manual mode, MT foot switch mode and multiple welding methods.

AWithZ UF20B energy storage super farad capacitor spot welder has a full-color large screen, 99 gears adjustment and strong welding 0.4MM, can weld copper, widely used in power tool repair, household appliance repair, small and medium-sized battery assembly, button battery welding, mobile phone repair.

Features:
1. Strong welding 0.4MM, can weld copper, strong output, strong current.

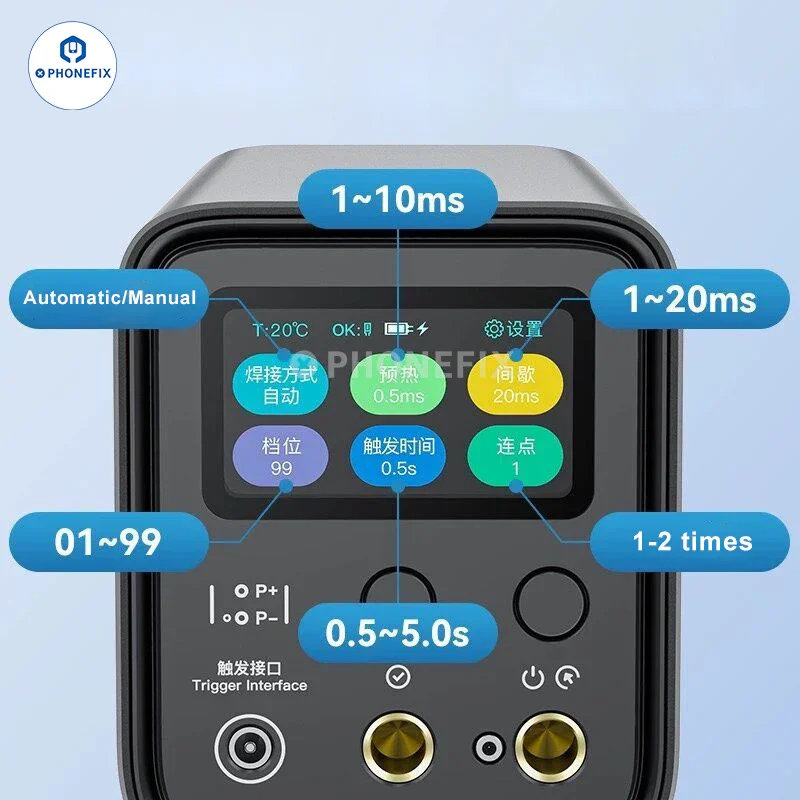

2. AWithZ small portable spot welder, with full-color large screen, 99 gears adjustment and can weld 0.4mm thickness.
3. More stable: millisecond energy gathering double pulse, continuous operation without heating, no pipe explosion.
4. Longer: real-time energy storage, support continuous welding, battery life increased by 100%.
5. Stronger: 10500W high power, strong welding 0.4MM, can weld copper.
6. Longevity: 500,000 cycles, more durable.
7. Widely applicable: power tool repair, household appliance repair, small and medium-sized battery assembly, button battery welding, mobile phone repair.
8. The spot welding of the smart hand-controlled pen is more delicate and precise, and the alumina copper welding needle can be removable, which is safe and durable.
9. The smart hand-controlled pen is comfortable to hold and will not be tired after holding it for a long time; precise triggering, precision spot welding; ultra-low resistance, strong output.
10. Multiple welding modes: AT automatic mode, MT intelligent manual mode, MT foot switch mode.
11. Built-in quality safety chip + temperature control sensor + safety algorithm software and hardware dual protection.

Product information:
Brand: AWithZ.
Product name: Spot welding machine.
Model: UF20B.
Gear adjustment: 99 gear adjustment.
Capacitor type: Super farad capacitor.
Shell material: Aluminum alloy + plastic.
AC input: 100~240V 50-60Hz.
Output voltage: 6V (MAX).
Output current: 1750A (MAX).
Output power: 10.5KW (MAX).
Product size: About 181*95*80mm.
Product net weight: About 1.25kg.

Package includes:
UF20B host *1.
WP120 spot welding pen *1.
WP110 spot welding pen *1.
Foot pedal *1.
2M nickel coil *1.
Welding needle *2.
AC power cord *1.
Sandpaper *1.
