JTX A9 Curve Waveform Multi-function Measuring Meter for Mobile Phone Motherboard Current Voltage Diode Measurement. JTX A9 curve waveform ammeter features a 4.0-inch IPS HD display, supporting pointer, curve, and digital display modes. It supports 0-36V voltage and current testing, real-time voltage and current monitoring, and includes charging power calculation and direct connection to a host computer. Suitable for circuit fault detection and repair in electronic products such as mobile phones, batteries, and chargers.

Feature:

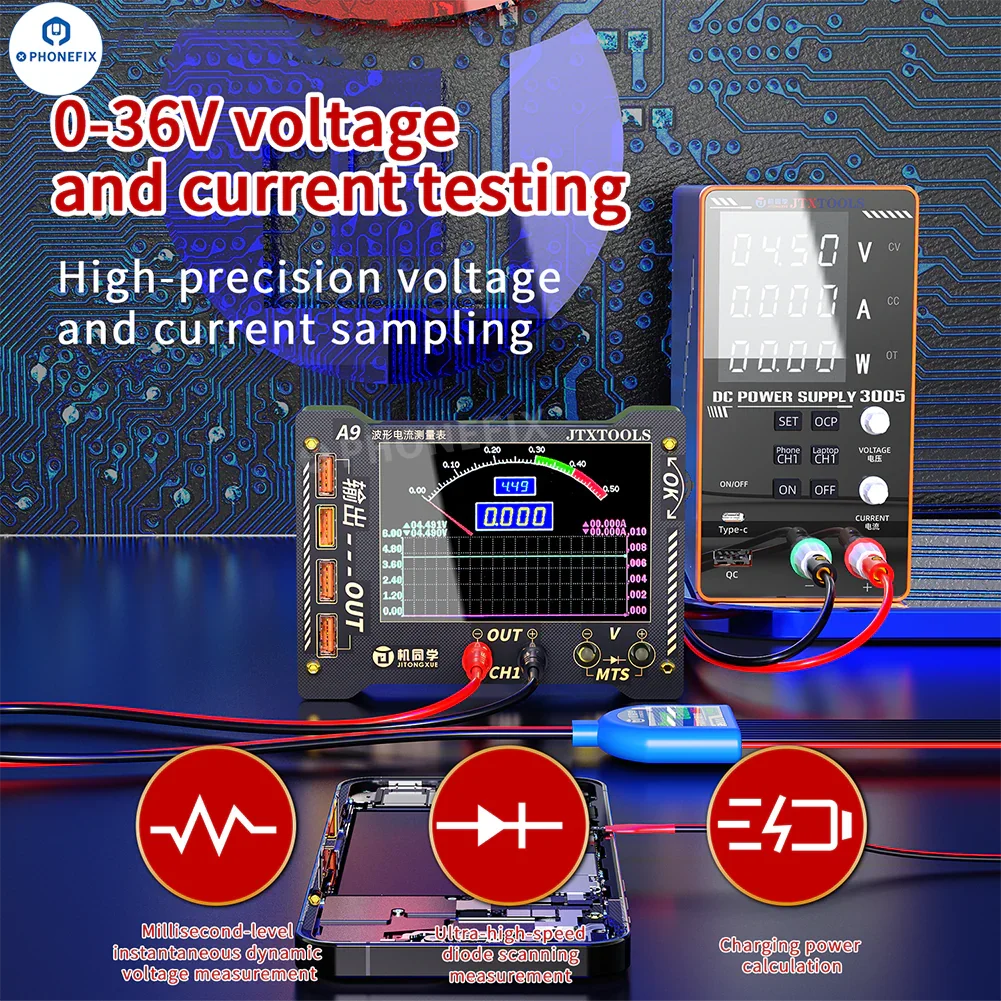

1. High-precision voltage and current sampling: Supports 0-36V voltage and current testing, accurately measuring and displaying in real time.
2. Ultra-high-speed dynamic measurement: Millisecond-level instantaneous dynamic voltage measurement, with a capture speed 470% faster than traditional devices.
3. Multiple display modes: Supports pointer, curve, and digital display modes to adapt to different measurement needs.

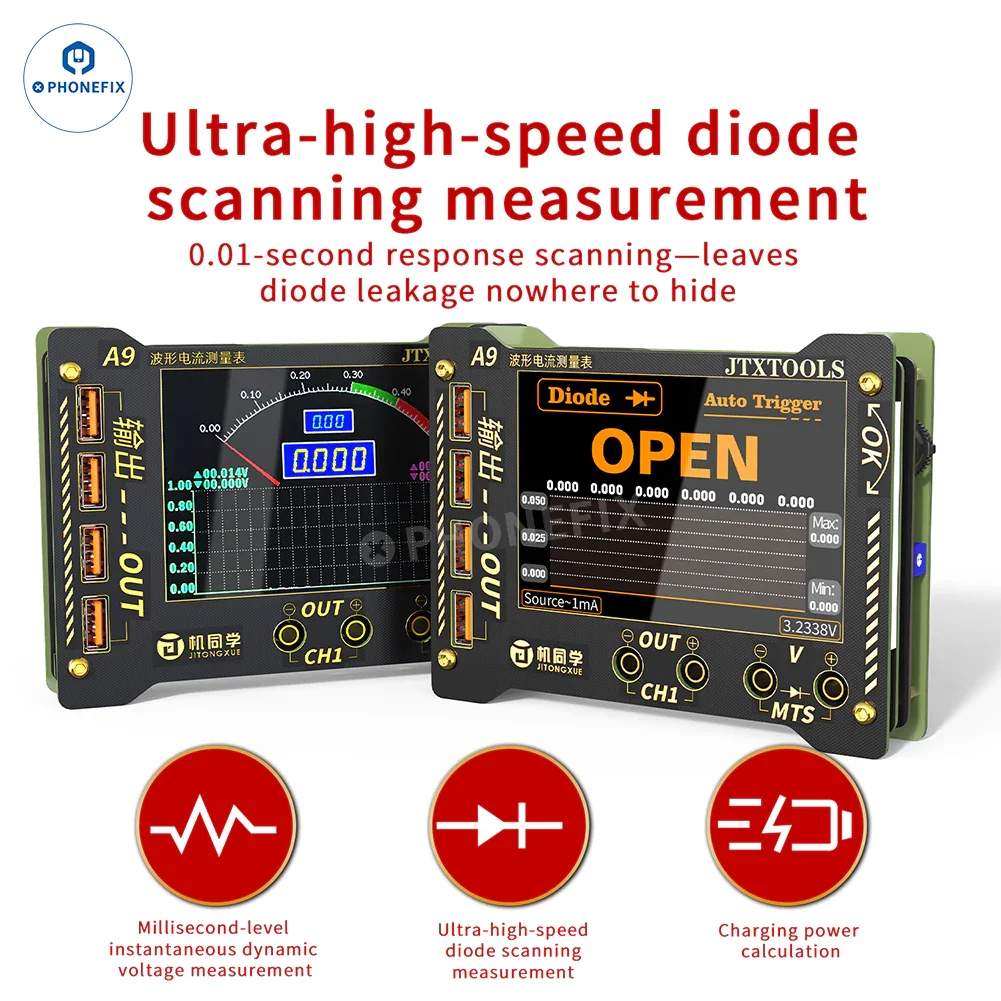

4. Ultra-high-speed diode scanning: 0.01-second response scan, quickly detecting diode leakage problems.
5. Cloud Firmware Upgrade: Product functionality can be continuously evolved through cloud firmware updates.
6. Transparent Projection to Host Computer: Supports host computer connection for real-time data display, facilitating workstation operation.
7. Charging Power Calculation: Real-time display of charging voltage, current, power, time, and battery capacity (MAH/NWH).
8. Industrial-Grade Visual Revolution: 4.0-inch IPS high-definition display, 500nit sunlight-readable, 178° full viewing angle, clear waveform analysis.
9. Intelligent Fault Prevention: Supports rapid fault detection, intelligently marks and quickly troubleshoots abnormal issues such as short circuits, pinpointing the root cause of the fault within 3 seconds.
10. Flexible Installation and Adjustment: Can be mounted on a fixed bracket, supports vertical and horizontal adjustment, eliminating operational limitations.

Specifications:

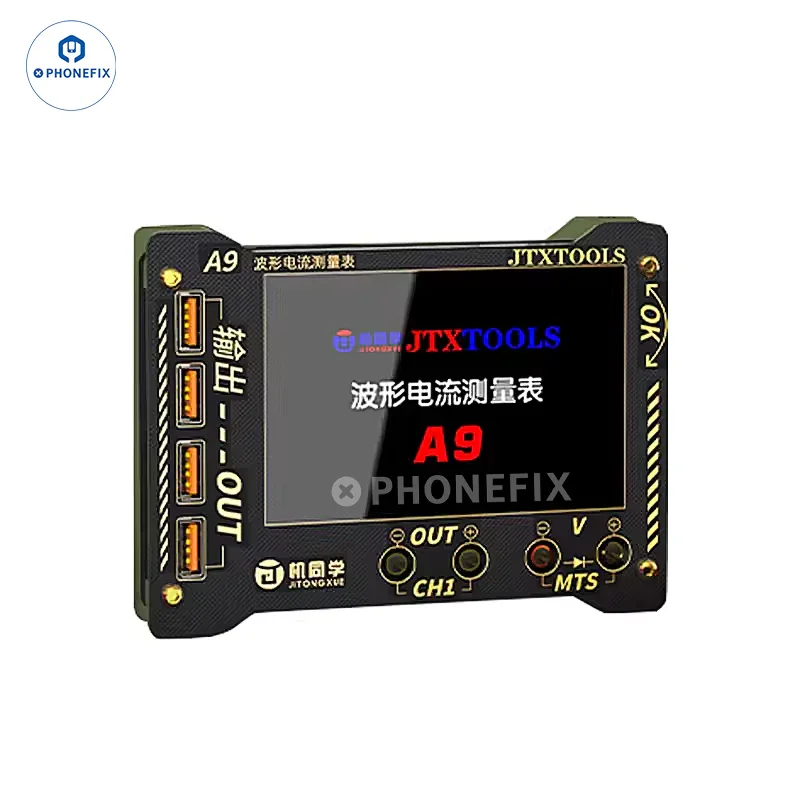

Model: JTX A9 Curve Waveform Measurement Tester.
Input Voltage: DC 0~36V
Current Accuracy: 0.5mA
Detection Current: 0~8A
Screen Size: 4.0 inches
Protection Voltage: <60V
Screen Resolution: 320*480
Protection Current: <15A
Device Power Supply: 5V 2A
Output Voltage and Current of Diode Test: 0~2.8V
Banana Plugs: 40V 8A
Voltage Resolution: 1mV
Current Resolution: 0.1mA
