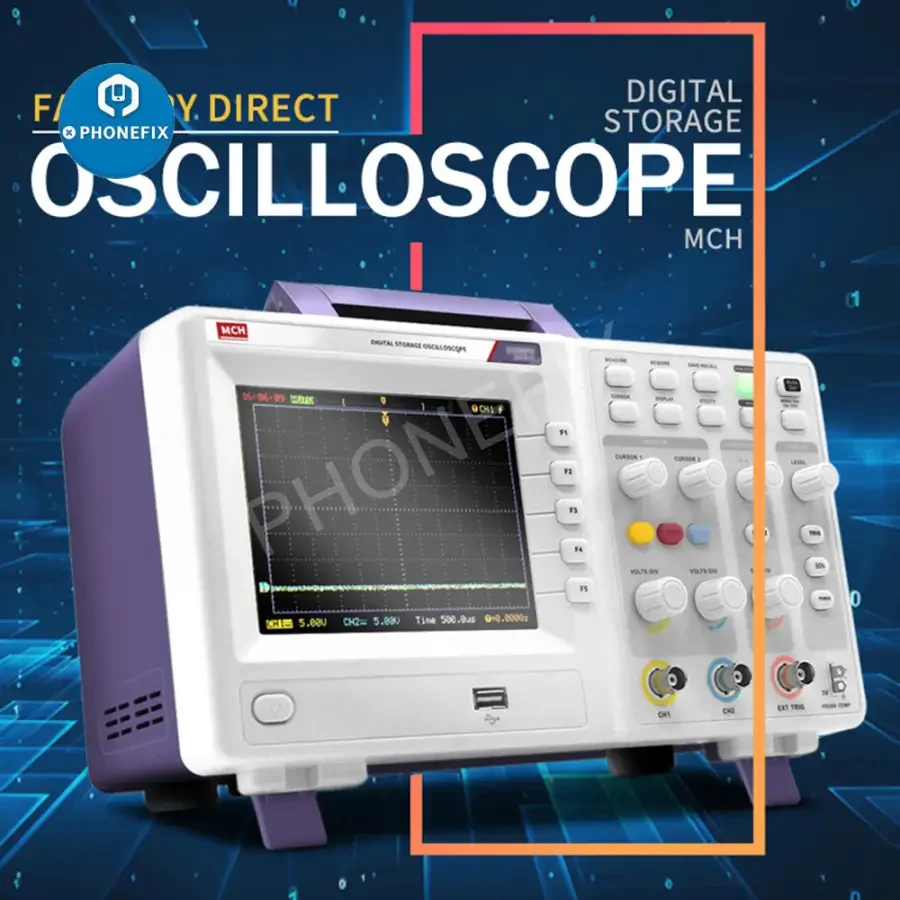

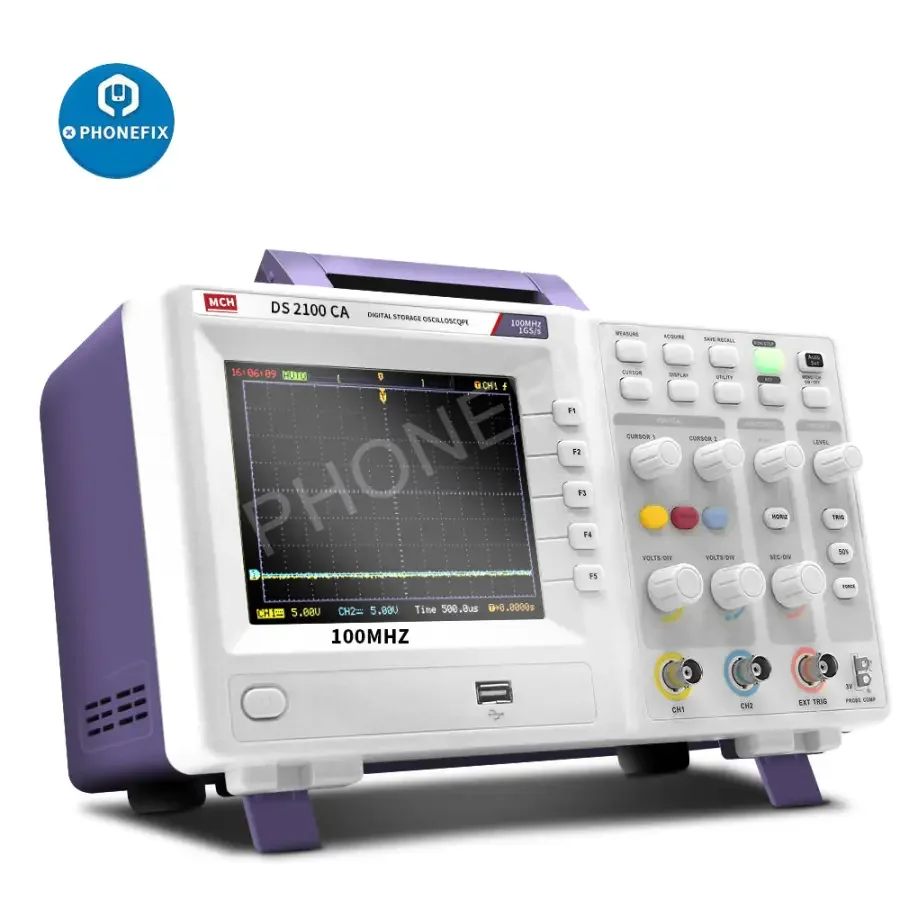

MCH DS Series Advanced Digital Storage Oscilloscope With Dual Channel
MCH Digital Oscilloscope Storage Oscilloscope Dual Channel Oscilloscope Sampling 1G 100MHZ DS-2100CA
|
Model |
DS-2025CA 2060ca 2010ca 2200ca (25m 60m 100m 200m) |
|
|
Channels |
2+Ext.Trigger |
|
|
Bandwidth |
25m 60m 100m 200mhz |
|
|
Rising time |
1.8ns |
|
|
Time base |
1ns to 50s/div |
|
|
Real time sample rate |
1GSa/s |
|
|
Equivalent sample rate |
50GSa/s |
|
|
Input impedance |
1MΩ//13pF |
|
|
Input coupling |
DC, AC, GND |
|
|

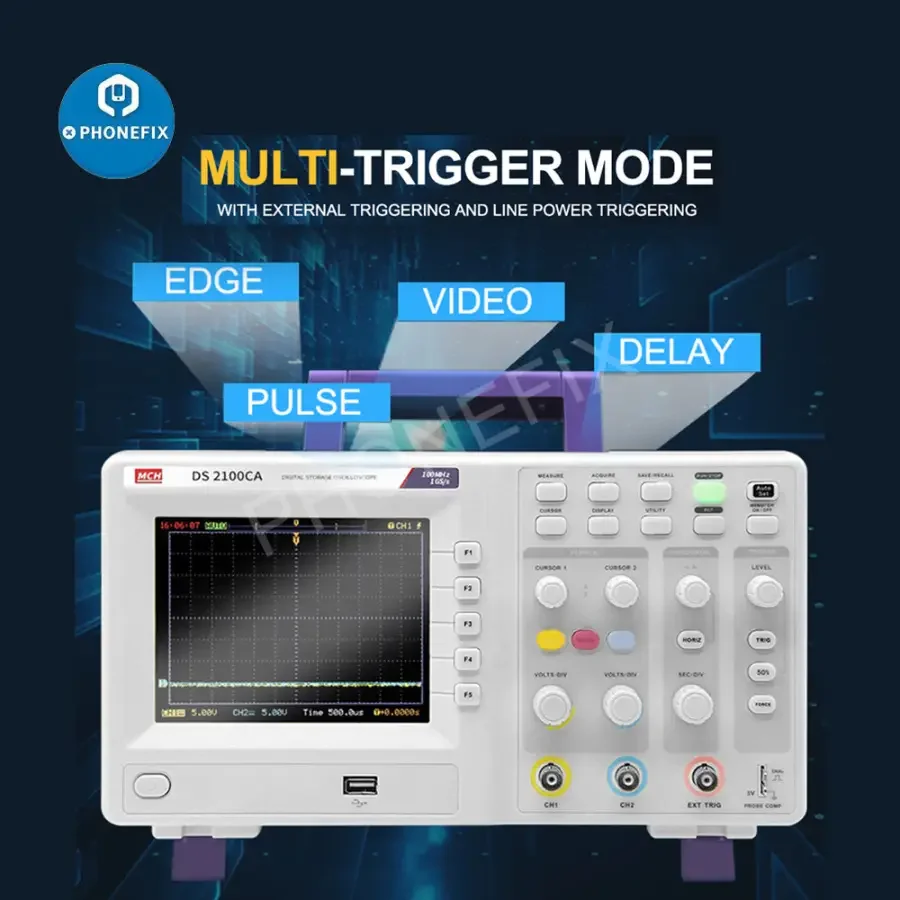

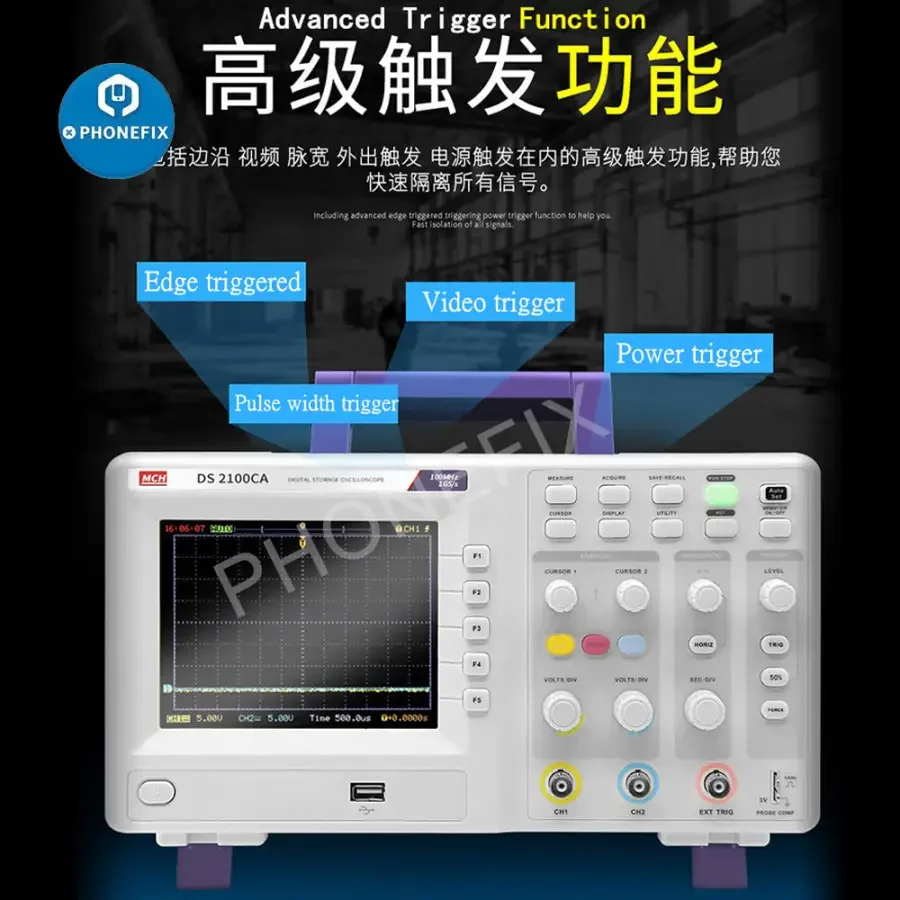

Trigger |
Edge, video, pulse, delay |
|
|
Acquisition modes |
Auto, normal, single |
|
|
Trigger sources |
CH1, CH2, Ext, Ext/5, Ext(50Ω) |
|
|
Horizontal accuracy |
±0.01% |
|
|
Vertical sensitivity |
2 mV/div to 5V/div |
|
|
Vertical resolution |
8bit |
|
|
Max. input voltage |
400V(DC+AC peak),5Vrms@50Ω |
|
|
Auto measurements |
Vpp, Vamp, Vrms, Vmin, Vtop,Vbase,Vbase,Vavg,Freq,Period,Rise time |
|
|
Fall time,+width,-width,overshoot,preshoot,+duty,-duty,etc |
||
|
Math |
+-×÷FFT |
|
|
Storage |
10waveforms,10 steps |
|
|
FFT |
Window |
Hanning, hamming, Blackman-harris, rectangylar |
|
Sample points |
1024points |
|
|
X-Y |
Bandwidth |
200MHz |
|
Phase diff |
±3 degrees |
|
|

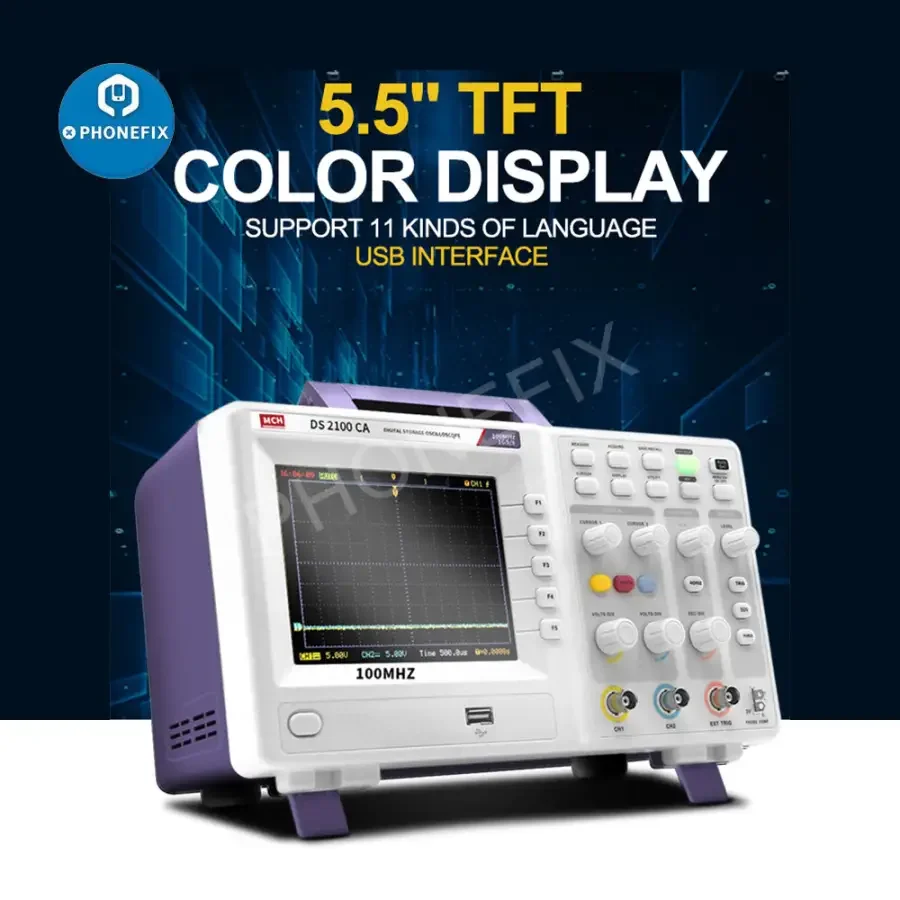

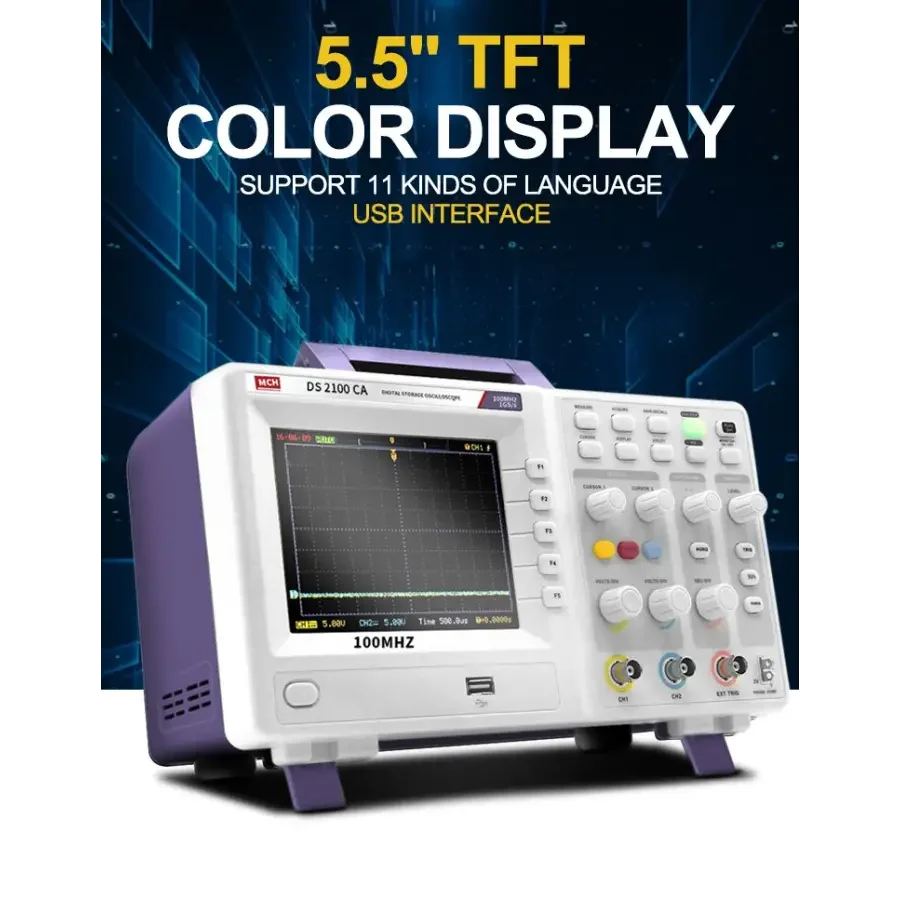

Display |
A/CA: mono/color,320×240 resolution |
|
|
Power supply |
Worldwide 100-225 V/40VA Max |
|
|
Interface |
USB port |
|
|

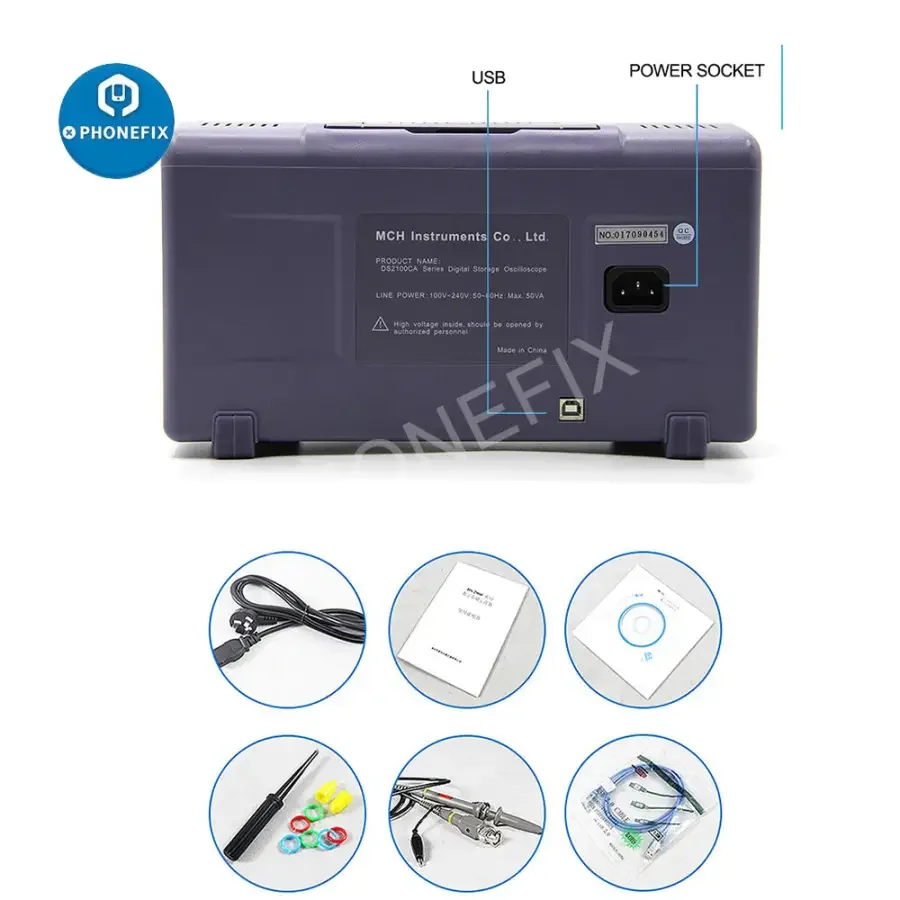

Accessories |

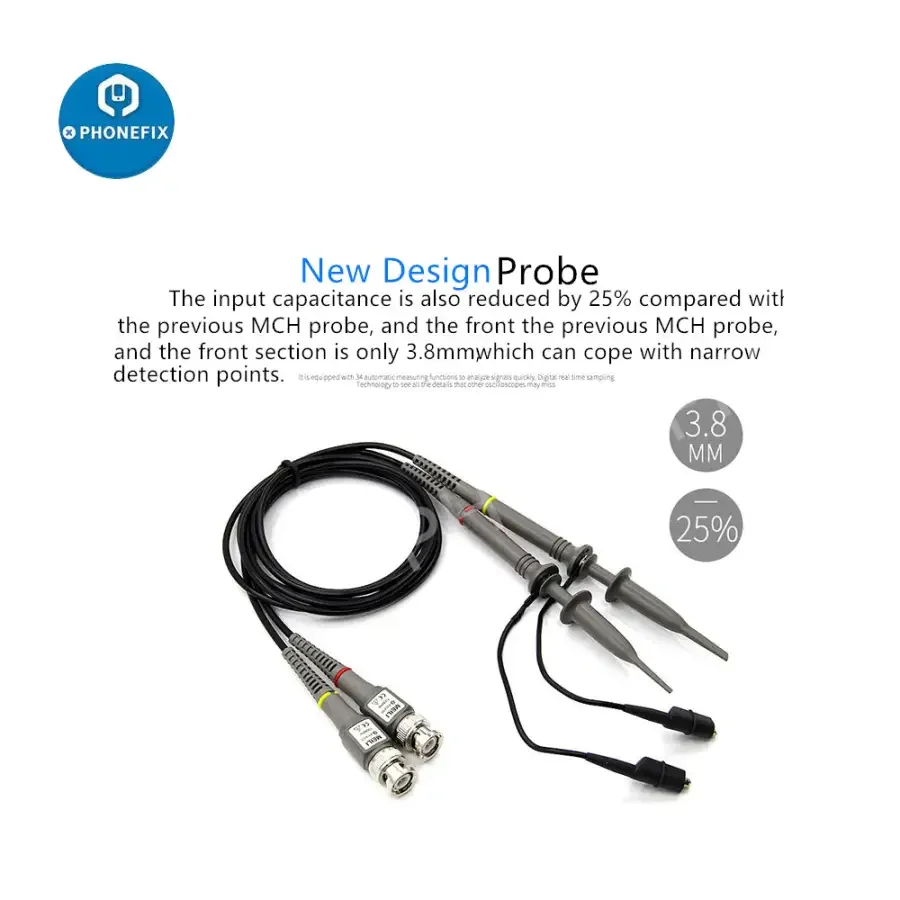

Probe×2, power cord, user's manual |
|
|
Dimension |
303(W)×145(H)×288(D)mm |
|
|
Weight |
3.5kg |
|
Original: $139.55
-65%$139.55
$48.84Product Information
