Mechanic MEC 2K/2K PRO/4K HD Electronic Eyepiece Camera can convert a Binocular Stereo Microscope into a Trinocular Microscope. Use SONY 1/2.3" imported CMOS sensor, adopt high-quality CMOS sensor, hardware sensor, 5/8 megapixels, HD image, Type-C output, mobile phone/computer connection, and support Android phone/PC to download OTG video software, real-time observation, clear and visible.

Features:
1. SONY 1/2.3", imported CMOS sensor, adopting high quality CMOS sensor, hardware sensor, 5/8 megapixel, i.e. 2592*1944, HD image.
2. Type-C output, mobile phone/computer connection. Only support Android phone/PC computer to download OTG video software. Real-time observation, clearly visible.
3. Electronic eyepiece, real shot effect picture.

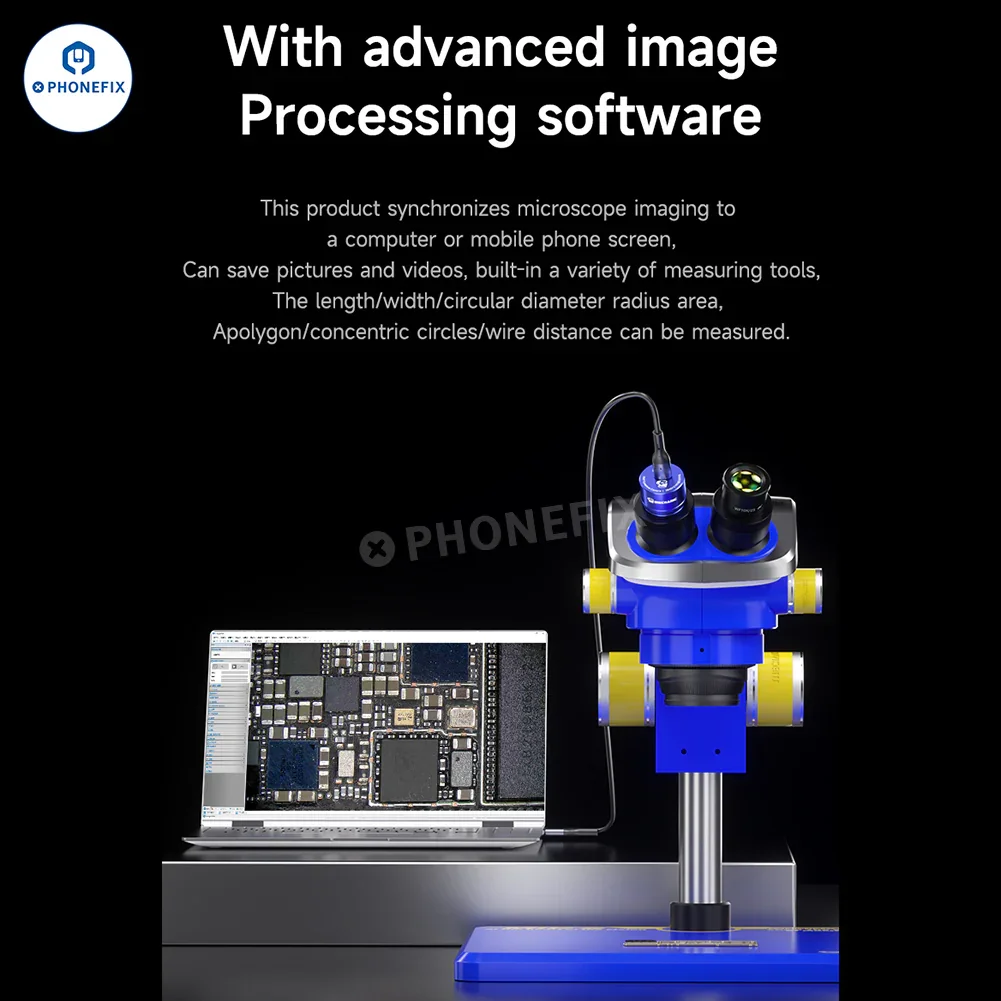

4. With advanced image processing software, This product synchronizes microscope imaging to a computer or mobile phone screen, can save pictures and videos, and built-in a variety of measuring tools. The length/width/circular 75%diameter radius area, a polygon/concentric circles/wire distance can be measured.

Product Parameters:

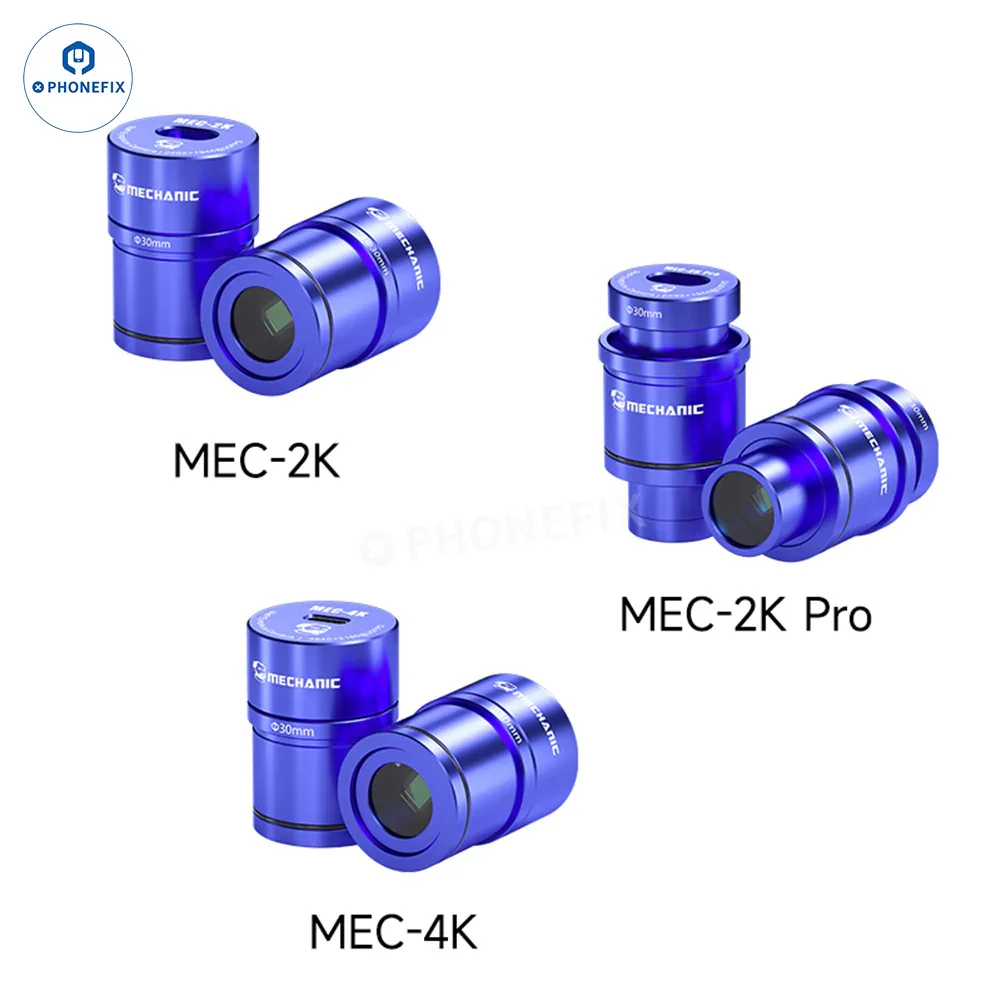

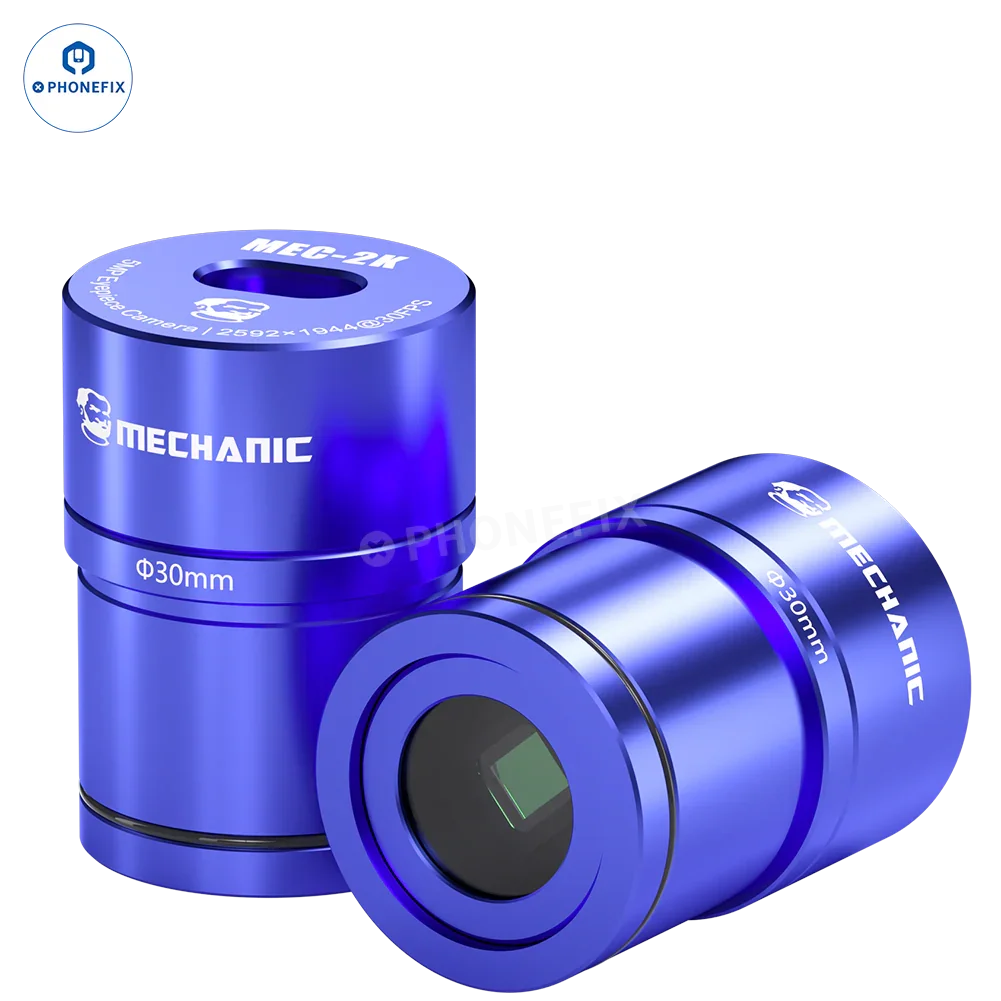

Model: MEC-2K Eyepiece Camera.
Pixel Size: 2.20uμm(H)X2.20μm(V)
Image Resolution: 2592*1944
Multiples: Zoom 1X
Image Sensor: 1/2.5"color CMOS
Spectral response: 400nm-1000nm

Model: MEC-2K Pro Eyepiece Camera
Pixel Size: 2.20μm(H)X2.20μm(V)
Image Resolution: 2592*1944
Multiplier: Reduced by 0.5X
Image Sensor: 1/2.5” color CMOS
Spectral Response: 400nm-1000nm

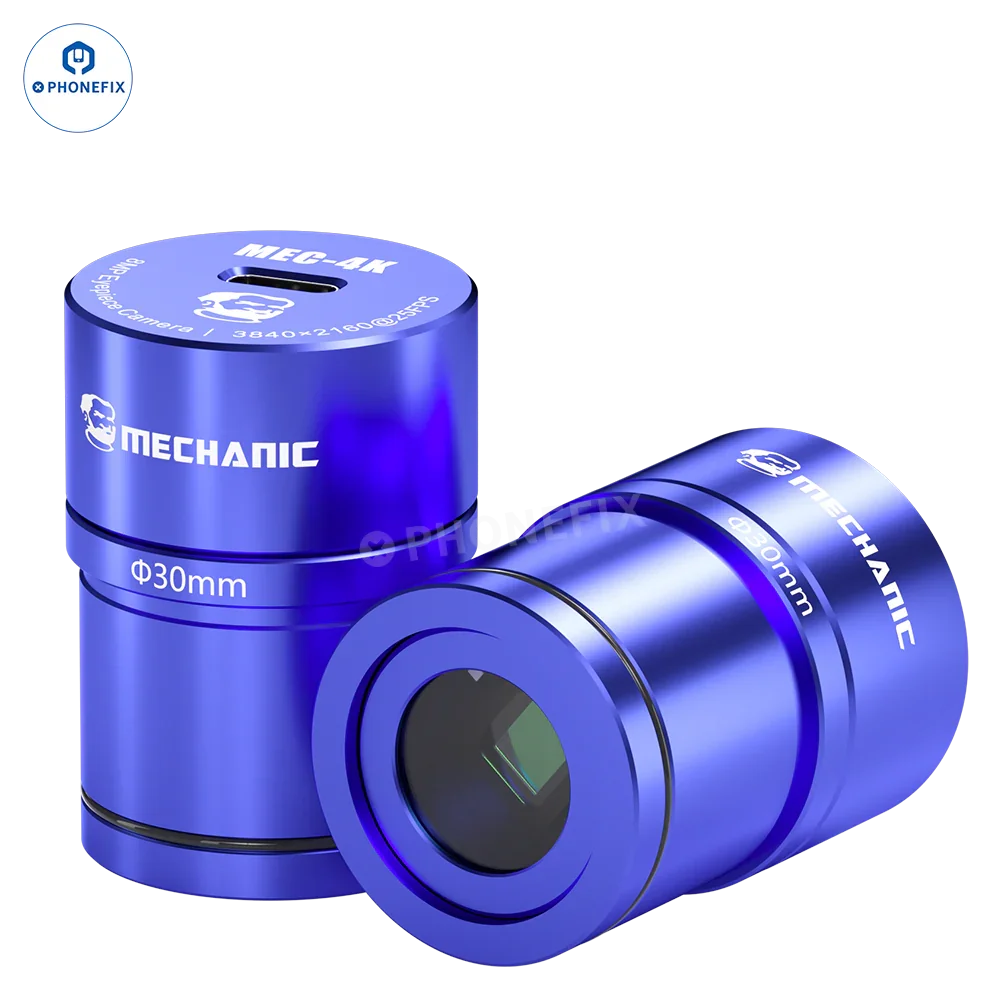

Model: MEC-4K Eyepiece Camera.
Pixel Size: 1.55uμm(H)X1.55μm(V)
Image Resolution: 3840*2160
Magnification: 1X
Image Sensor: 1/2.3” color IMX37CMOS
Spectral Response: 400nm~700nm

Software: Please use your phone to scan the QR code on the device packaging to download the software.  Or you can use this link: https://drive.google.com/file/d/1uOoV6be2C3r15YuMx_YPD6gIlNJkg13E/view?usp=drive_link

Packing Lists:
Data cable x1
Electronic eyepiece x1
Φ30mm adapter ring x1
Package Φ31.7/25.4mm adapter ring x1
