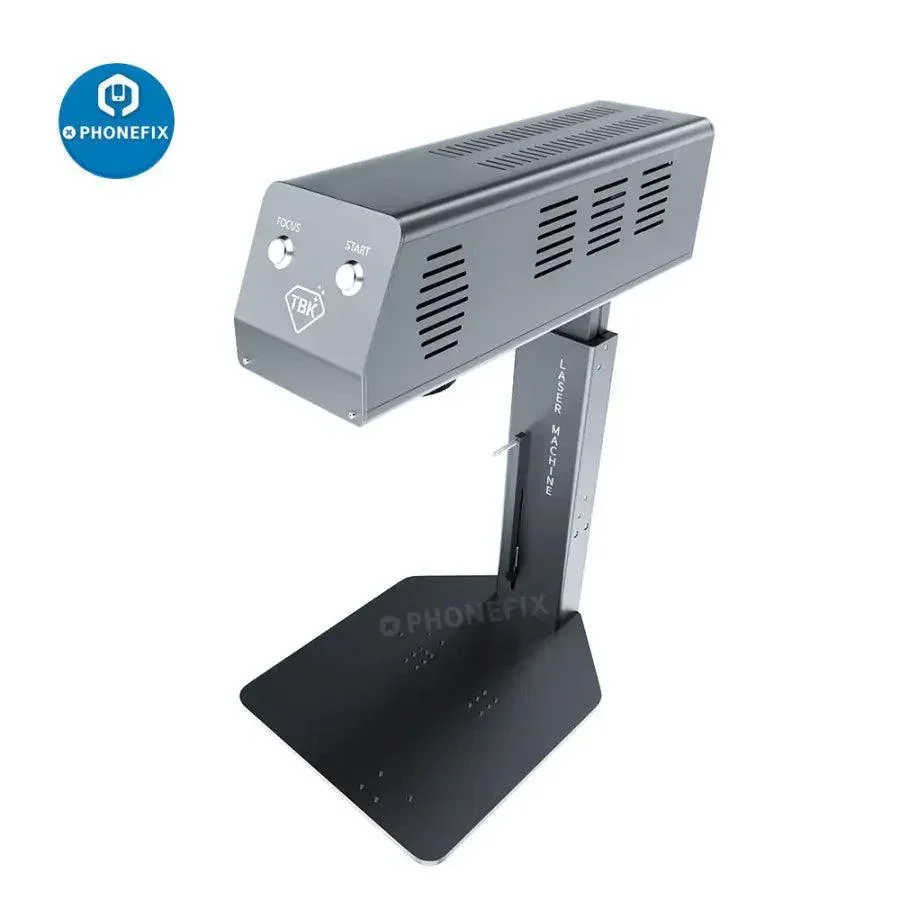

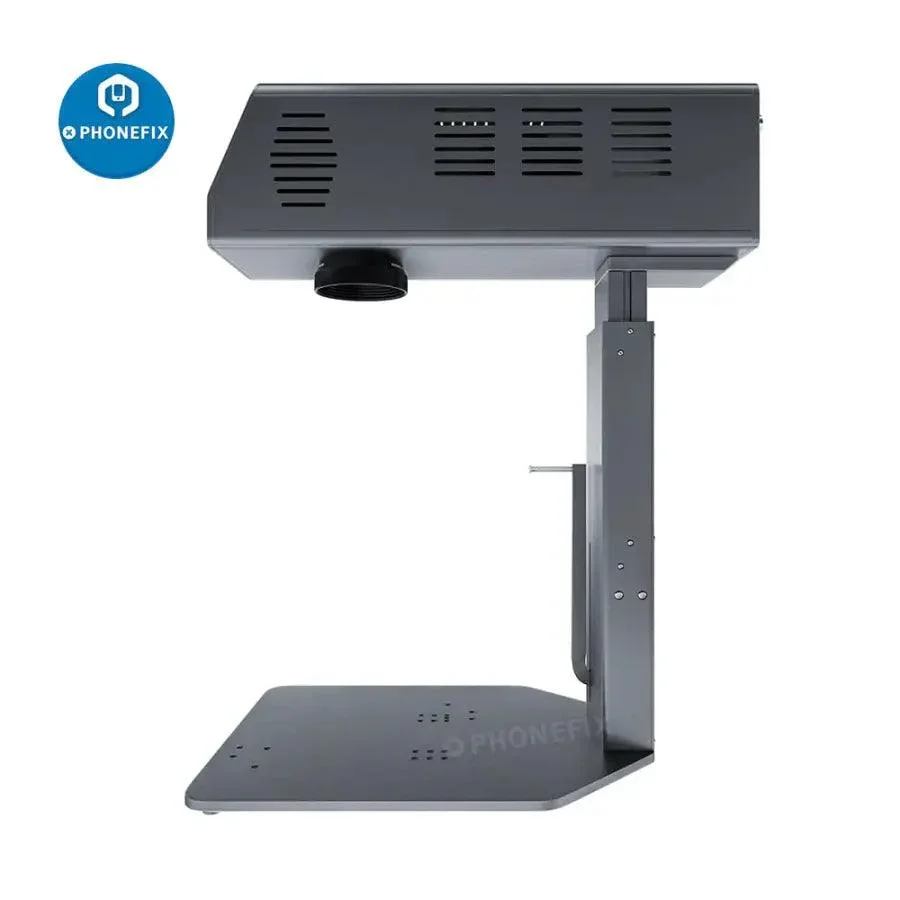

TBK-958M Mini Laser Engraving Separation Machine for Smartphone Screen Dispaly Rear Glass Replacement. TBK 958M laser machine LCD screen back glass removal repair for iPhone X-15 Pro Max.

TBK-958M Features:

1. 2021 Newest Designed Mini Sized Laser Engraving and Separation Machine for Smartphone Screen Dispaly and Rear Glass Replacement.
2. Small size 36.5*23*42cm, Light Net-weight 6.0 kgs;
3. The max height of the engraved object is 55mm, and marking range 175×175mm.
4. Independently researching and developing the Optical path;
5. Integrated-power mini laser, equipped with upgrading data in cloud;
6. Imported sensor auto focus and imported high precision calibrator;
7. External computer; one-button focus, one-button starts, simple operation.



TBK 958M specification:
Name: Fully Auto laser LCD screen remover
ITEM NO: iLaser ultra
Working voltage: 110V/220V
Packing size: 400*200*500mm
Product power: 500W
Laser power: 6W
Laser wavelength: 1064nm
Marking accuracy: 0.001mm
Marking speed: 10000mm/s
Repeat accuracy: 0.001mm
Marking area: 175mm*175mm
Marking depth: 0.015-0 5mm
Marking line width: 0.05-0.01mm
Applicaiton: Suitable for disassembling the back cover glass of all Apple iPhone series. The materials suitable for engraving include: metal, plastic, plastic, paper packaging boxes, etc.
