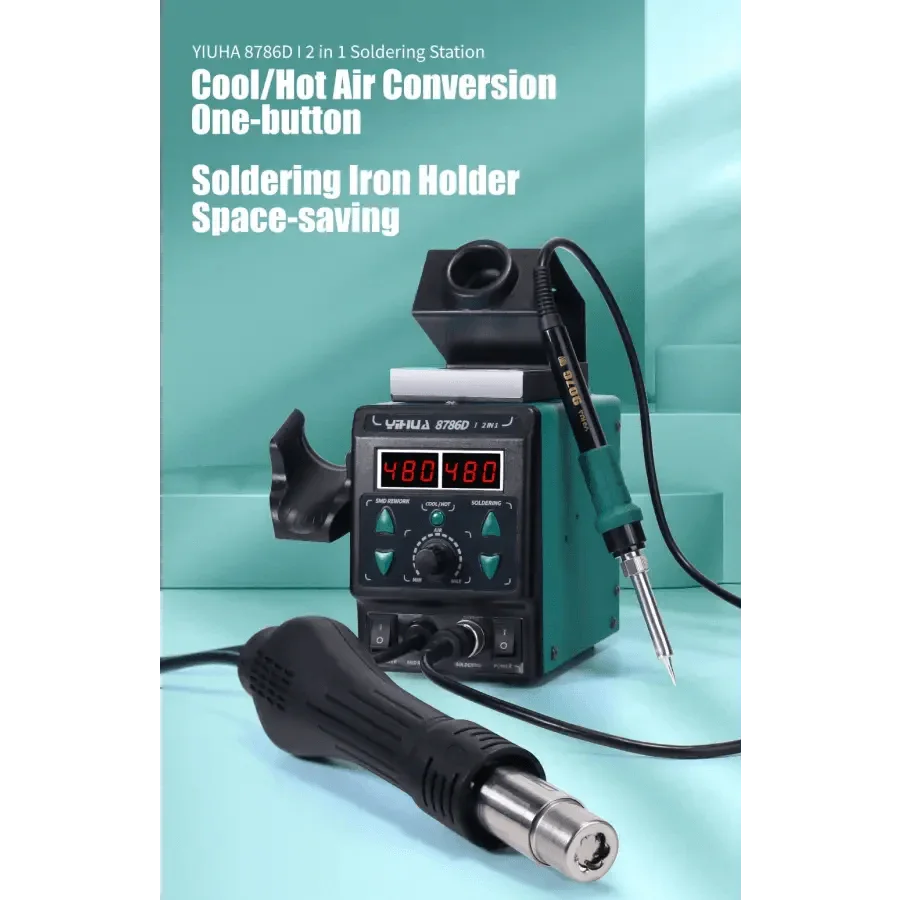

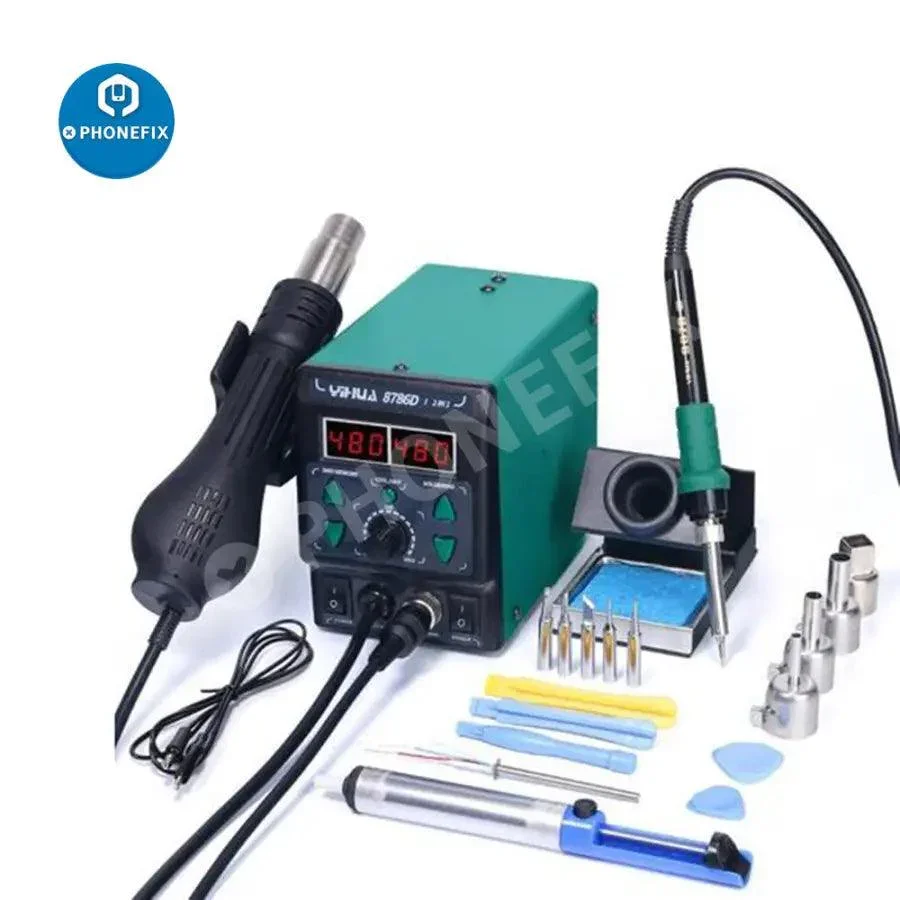

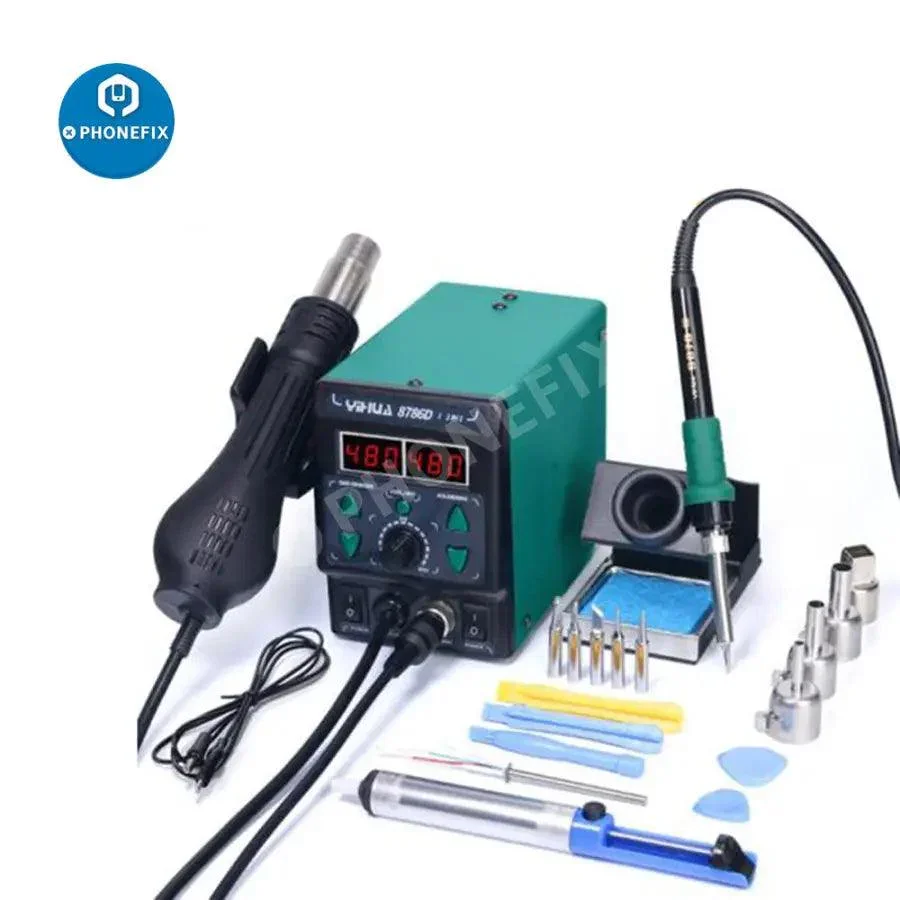

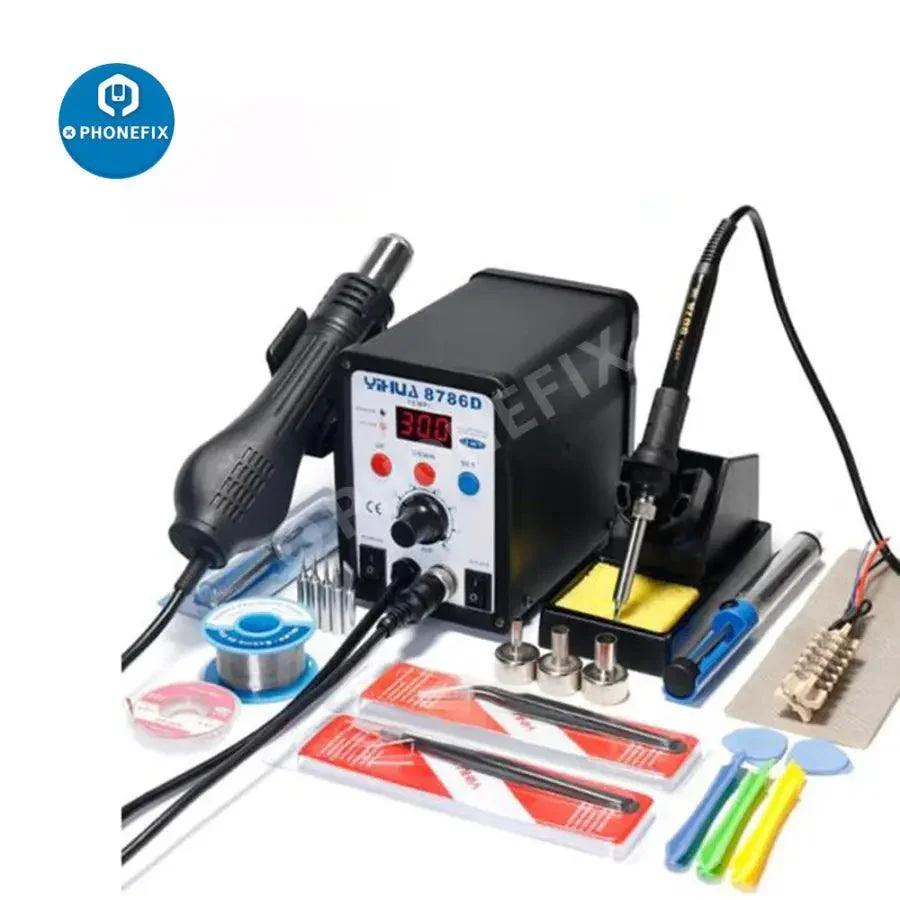

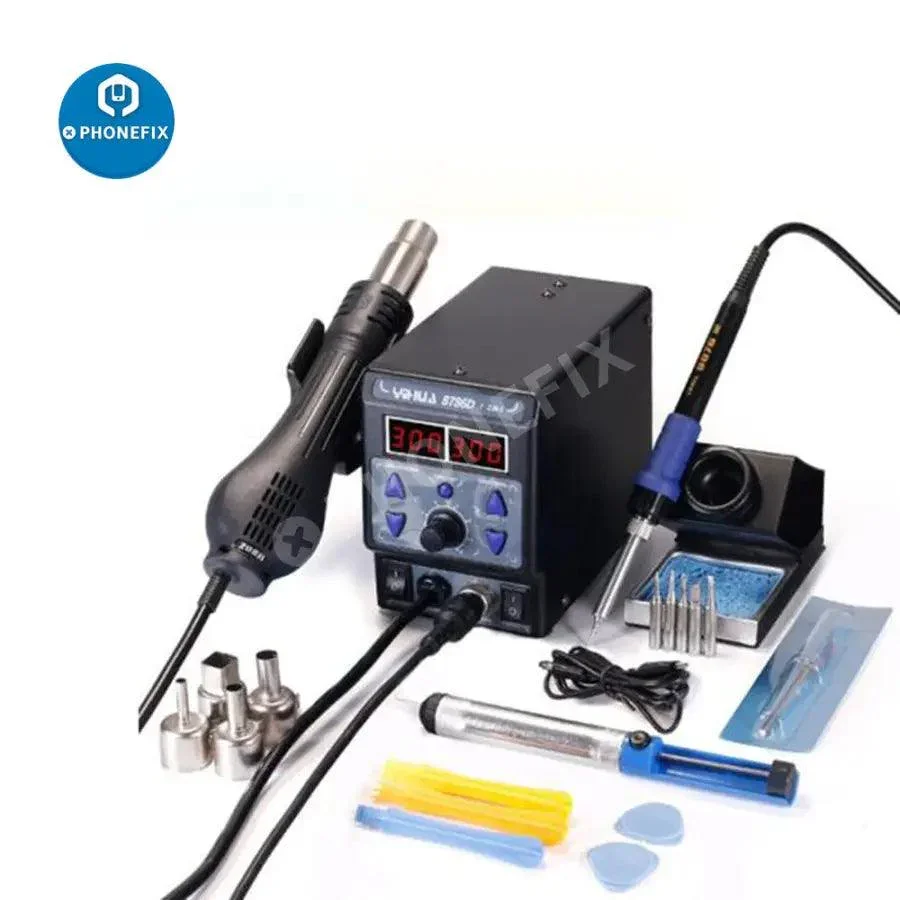

YIHUA 8786D BGA Rework Station Soldering Iron Hot Air Gun For Phone Repair
YIHUA 8786D Phone Repair BGA SMD Soldering Station Soldering iron Hot Air Soldering Station DIY Digital Rework Station
Application :
1. Suitable for a variety of elements soldering and de-soldering such as SOIC, CHIP, QFP, PLCC, BGA (especially suitable for mobile phone board and cable de-soldering).
2. For thermal shrinkage, drying, paint, adhesive removal, thawing, preheating, welding glued.
Machine :
Rated voltage 240V/230V/220V/110V ±10% 50Hz/60Hz
Whole device power ≤740W
Work environment: 0~40°C
Storage temperature: -20~80°C
Storage Humidity: 35%~45%
Hot air gun part :
Temperature range: 100°C~480
Temperature stability: ±2°C（Static state）
Airflow type: Brushless fan gentle wind
Airflow: 120L/min (MAX)

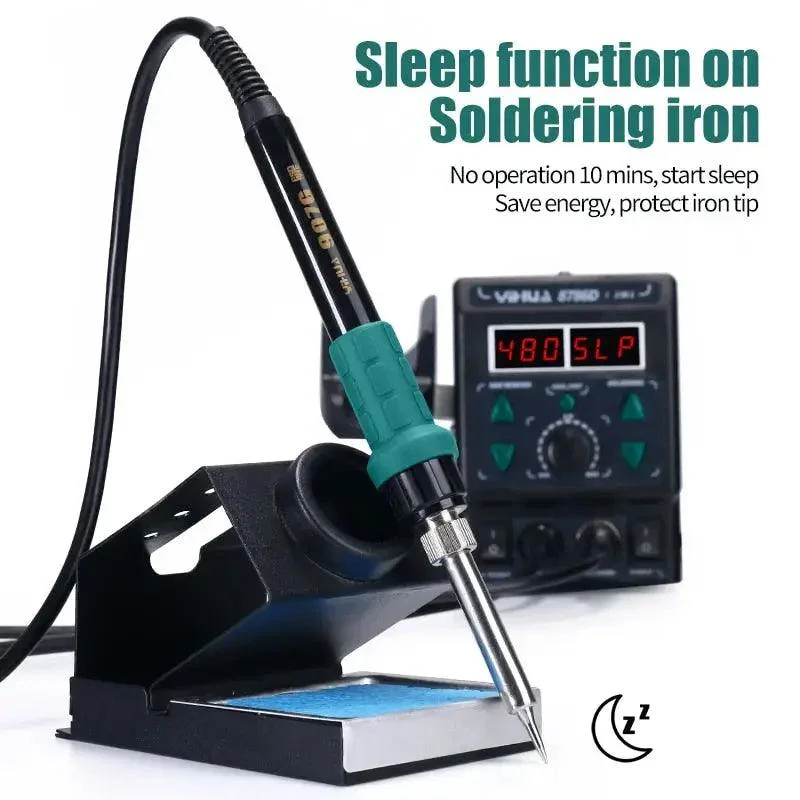

Soldering iron part :
Work voltage: 26V±10% 50Hz/60
Temperature range: 200°C~480°C
Temperature stability: ±2°C (Static state)
Tip-to-ground impedance: ＜2Ω
Tip-to-ground voltage: ＜2mV
Select Option
Select Voltage
From $41.49
Original: $118.55
-65%YIHUA 8786D BGA Rework Station Soldering Iron Hot Air Gun For Phone Repair—
$118.55
$41.49Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
YIHUA 8786D Phone Repair BGA SMD Soldering Station Soldering iron Hot Air Soldering Station DIY Digital Rework Station
Application :
1. Suitable for a variety of elements soldering and de-soldering such as SOIC, CHIP, QFP, PLCC, BGA (especially suitable for mobile phone board and cable de-soldering).
2. For thermal shrinkage, drying, paint, adhesive removal, thawing, preheating, welding glued.
Machine :
Rated voltage 240V/230V/220V/110V ±10% 50Hz/60Hz
Whole device power ≤740W
Work environment: 0~40°C
Storage temperature: -20~80°C
Storage Humidity: 35%~45%
Hot air gun part :
Temperature range: 100°C~480
Temperature stability: ±2°C（Static state）

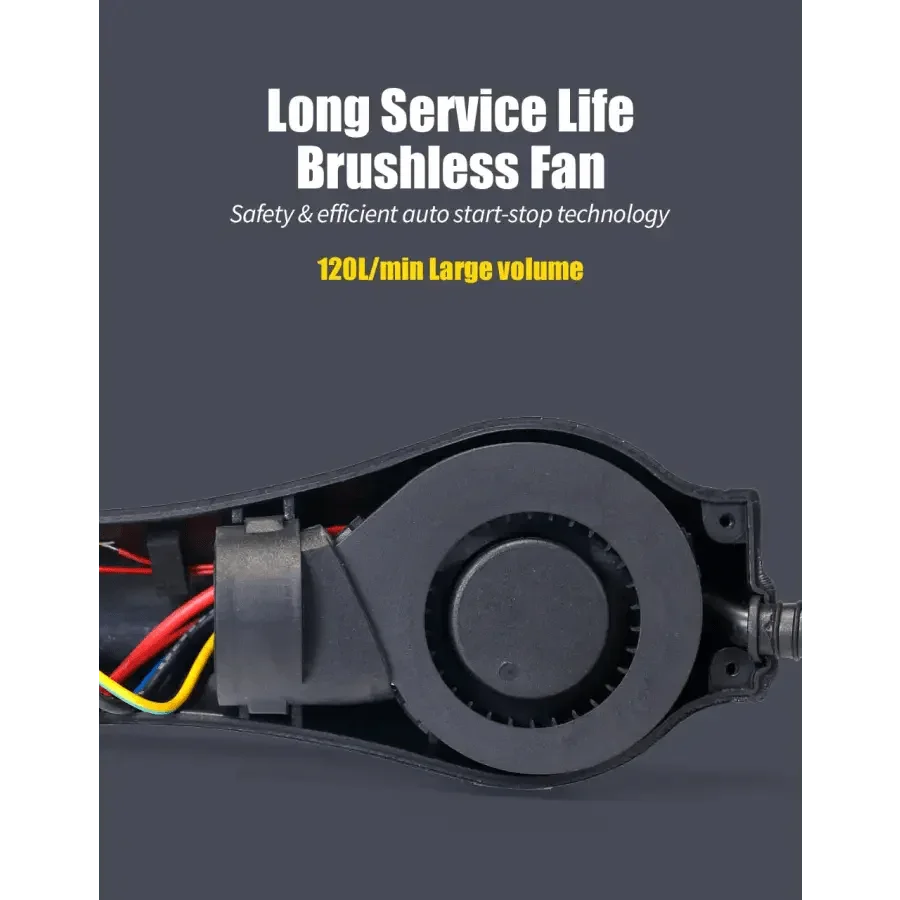

Airflow type: Brushless fan gentle wind
Airflow: 120L/min (MAX)
Soldering iron part :
Work voltage: 26V±10% 50Hz/60
Temperature range: 200°C~480°C
Temperature stability: ±2°C (Static state)
Tip-to-ground impedance: ＜2Ω
Tip-to-ground voltage: ＜2mV
